HOP 7-11 5m wormdrive clamp

HOP - HOP 7-11 5m wormdrive clamp

Type of clamp:Worm-clamp
product code:80.HOP.711
manufacturer: HOP
category:Fitting accessories HOP
manufacturer code:TRC-01KL
Ask about the product
gross: 0,59
net: 0,48 €



In stock Buy now, we will send tomorrow. Order in:
17 hours 17 minutes
Delivery from: 4



Added 1 pcs.
to cart!
- +
to cart




X to cart
0,59

HOP 7-11 5m wormdrive clampProduct code: 80.HOP.711

> <
Copyrights and rules of photo use

Product description:

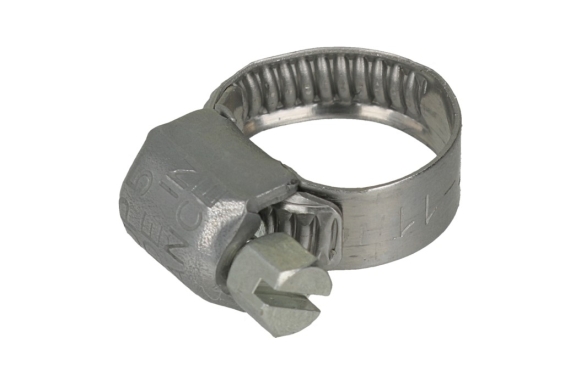

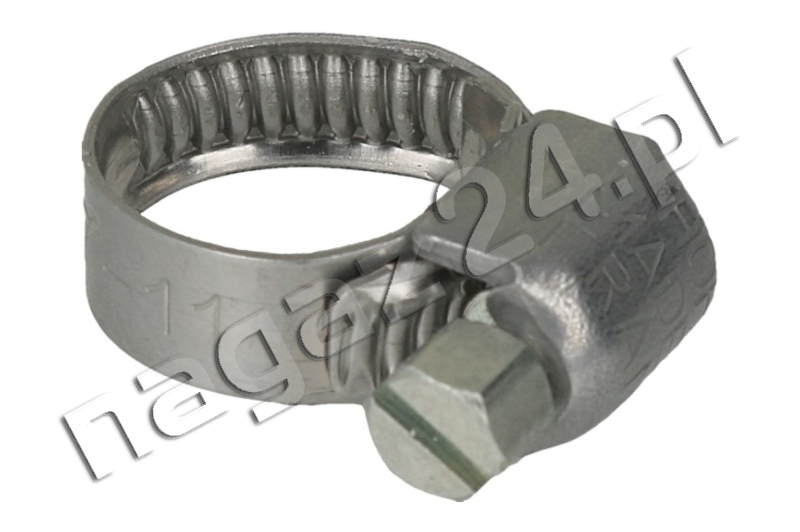

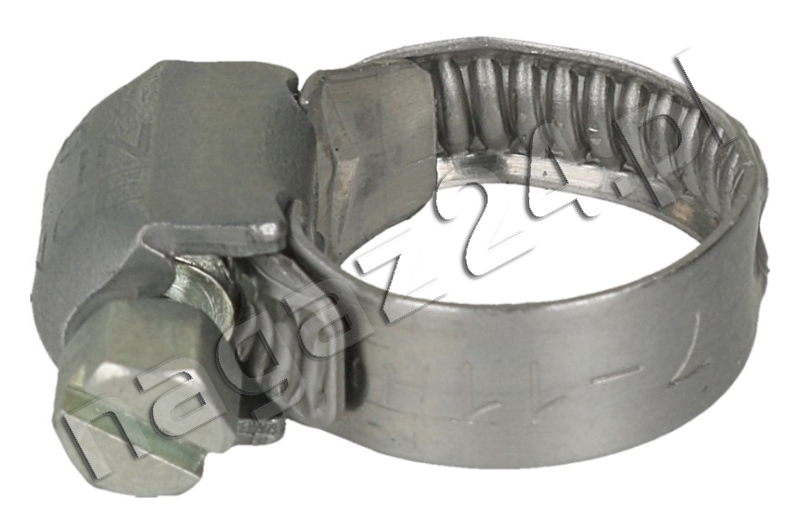

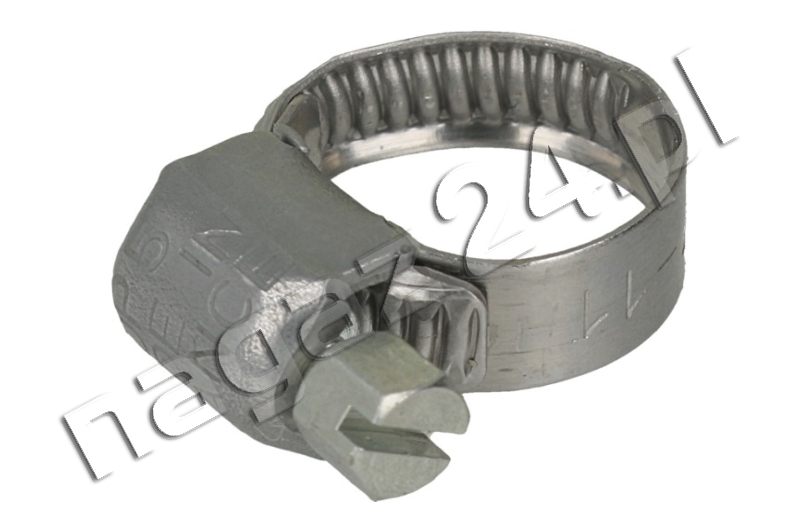

HOP clamp 7-11 mm - twisted screw clamp HOP 7-11 mm (5M)

Description of use:

When assembling automotive gas installations , the HOP clamp 7-11 mm is used to connect:

  • engine cooling system hoses (water),
  • vacuum hoses,
  • hoses connecting LPG injectors with nozzles in the intake manifold.

Technical specifications:

HOP band 7-11mm 5M :

  • steel tape width - 5 mm,
  • minimum diameter of the fixed object - 7 mm,
  • maximum diameter of the fixed object - 11 mm,
  • good tightness at relatively low torque,
  • high flexibility due to the minimum thickness of the tape,
  • Complies with NFE 27581 / DIN 3017 standards.
  • rounded edges to prevent damage to the hose,
  • recommended screw speed - 300 rpm. (max. 500 rpm),
  • screw SW 7 Phillips (7 mm hexagon with cross drive).

Features:

Type of clamp: Worm-clamp
