ECU model | 224 |
---|---|
For engines: | with indirect injection |
For engines: | 3 cyl, 4 cyl |
product code: | 55.LRE.986 |
---|---|
manufacturer: | LPGTECH |
category: | ECU's LPGTECH |
manufacturer code: | NGK97999 |
approval number: | E13-67R-010233 |

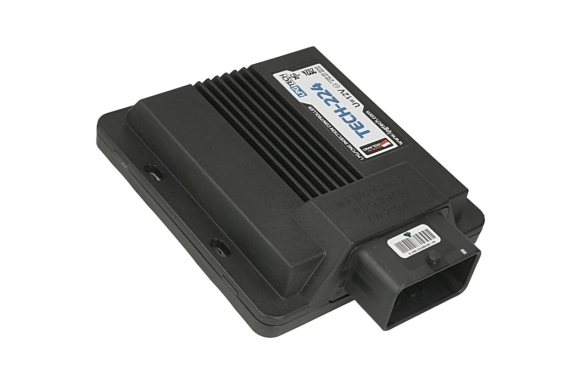

The tech-224 computer control panel is a modern device created by the renowned manufacturer LPGTECH . The manufacturer's product code is PR-ST-LP-0022 . This is control electronics that is necessary in LPG-powered cars.
The tech-224 control panel is part of the TECH-200 series of controllers, which is distinguished by advanced technology and functionality. This microprocessor controller has been designed specifically for engines with up to 4 cylinders.
The dimensions of the tech-224 control panel are 114x140x36 mm, which makes it small and light. Thanks to this, it can be easily installed in any car. The housing is made of Tecamid, which has identical properties to traditional aluminum housing, ensuring durability and resistance to mechanical damage.
The tech-224 control unit is responsible for controlling gas injection into the engine. Thanks to the tech-224 control unit, it is possible to smoothly switch the car's power supply between petrol and LPG.
This advanced microprocessor controller offers many functions that allow for optimal use of LPG gas. The tech-224 control panel allows you to calculate the gas dose based on a system of built-in corrections. Additionally, thanks to various corrections, such as gas temperature, reducer, gas pressure and engine speed, it is possible to precisely adjust the operation of the control unit to a specific vehicle.
The tech-224 computer control panel is also equipped with self-diagnosis, which allows for the detection of installation errors and faults. Additionally, the tech-224 control panel offers full short-circuit and overload protection, which ensures safe operation of the device.
- Support for gas injection into 4 cylinders.
- TECH-224 – possibility of cooperation with the TECH-OBD Scanner.
- Corrections for gas temperature, reducer, gas pressure and engine speed.
- Gas dose calculation based on a system of built-in corrections.
- Tuning in STANDARD and TECH modes.
- Self-diagnosis, detection of errors and assembly faults.
- Full short-circuit and overload protection.
- Support for Valvetronic and Wankel engines.
- 48 pin connector.
- Composite housing.
ECU model | 224 |
---|---|
For engines: | with indirect injection |
For engines: | 3 cyl, 4 cyl |
