| For connecting: | hose - part |
|---|---|
| Hoses: | PCV 6 / Cu 8 |
| product code: | 55.VAL.914 |
|---|---|
| manufacturer: | POLMOCON |
| category: | Fitting accessories POLMOCON |
| manufacturer code: | NGK97999 AEB820 |
| approval number: | E4-67R-010196 |
Connection set for the multivalve in the vertical tank of the Polish company PolmoCon Sp. z oo

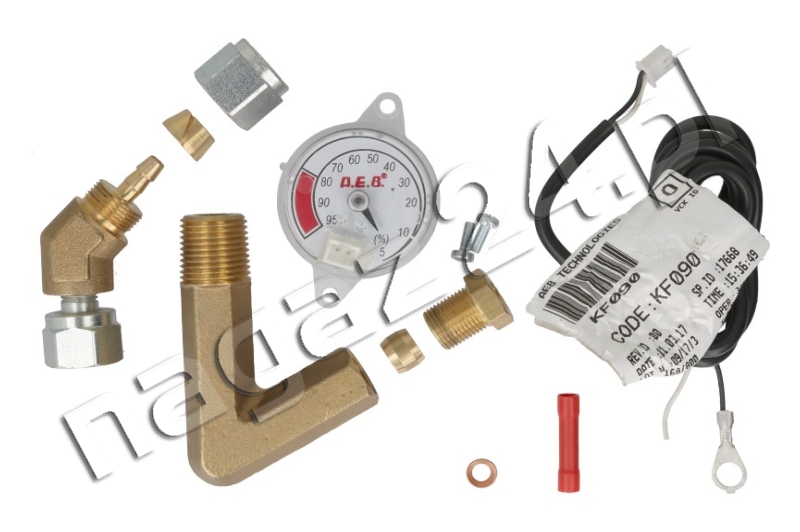

A mounting bag with two elbows and a full indication sensor from the Italian company AEB, the set allows you to connect a copper pipe on the power supply, a pipe with a diameter of 8 millimeters between the gas filler and the multivalve on the tank, and a thermoplastic pipe at the exit from the LPG gas tank.
Complete with full indication AEB 820 with resistance from 5 Ohm to 95 Ohm with connection harness. Brass elbow for the supply line at an acute angle of 60ᵒ on one end with a socket for a sealing barrel with a diameter of 8 millimeters and a pressure screw with an M12x1 millimeter thread, on the other end with an M16 male thread. Brass elbow for the output conduit at an obtuse angle of 120ᵒ on one side with a tip for a thin thermoplastic conduit on the other side a nut for a multivalve with ½” UNF thread.
| For connecting: | hose - part |
|---|---|
| Hoses: | PCV 6 / Cu 8 |
Product compliance details: » Person responsible for the product » Security, compliance and warnings
