Multivalve angle: | Vertical 90° |
---|---|
Gas out diameter: | 6 mm |
Hose side: | On left |
For tank with a diameter: | 200 mm |
product code: | 77.STA.274 |
---|---|
manufacturer: | TOMASETTO |
category: | Multivalves TOMASETTO |
manufacturer code: | NGK97999 |
approval number: | E20-67R-010424 |

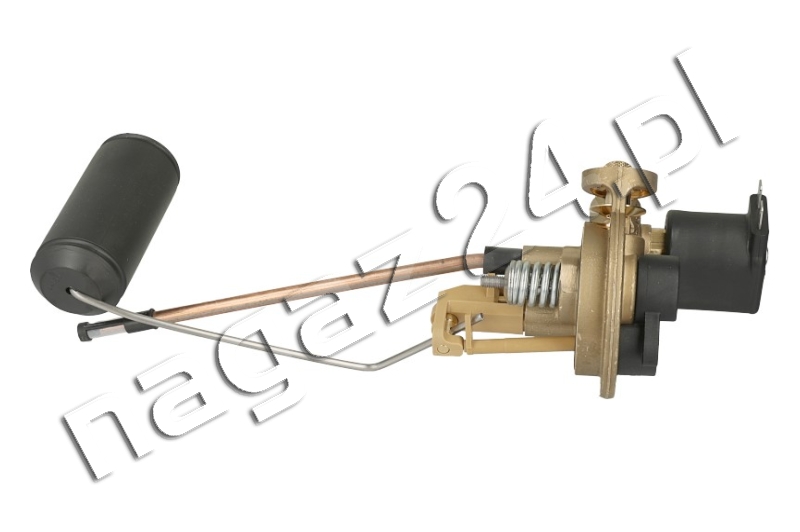

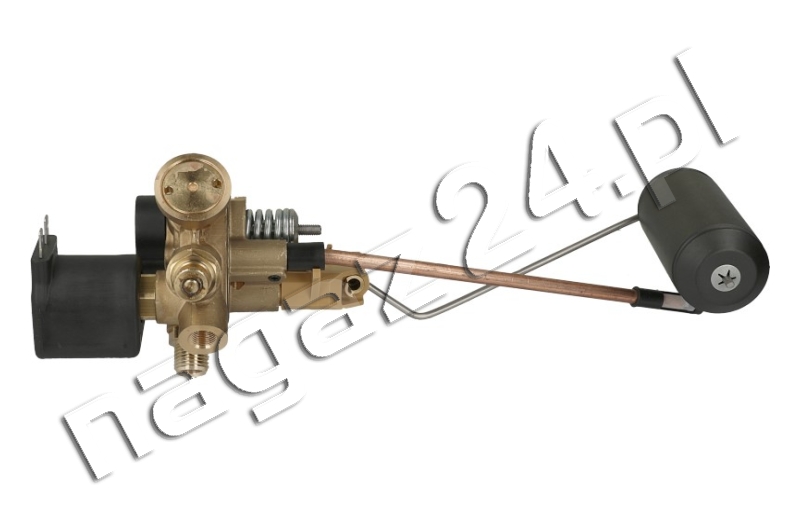

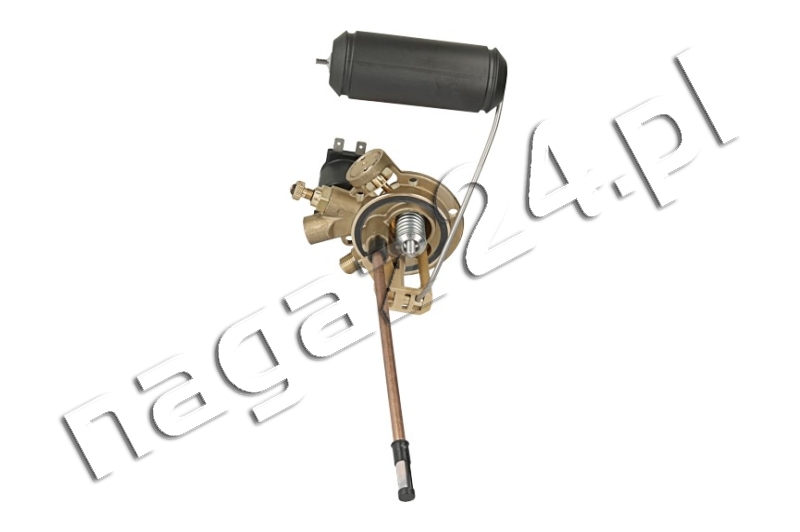

Multivalve for a cylindrical, cylindrical tank in the Standard version, model AT02 from the Italian company Tomasetto Achille Spa.
Multi-function valve, fittings for LPG cylindrical tank, in the trunk of a vehicle for a tank with a diameter of 200 millimeters. It fulfills several important functions related to the safety and use of the gas system in the vehicle. He is responsible, among other things, for filling the tank with the right amount of gas, up to 80% of the tank's water capacity, transmitting a signal about the tank's filling level, protection against excessive pressure increase in the tank, protection against a sudden gas outflow caused by damage to the gas pipe between the tank and the engine compartment, shutting off gas outflow from the tank when the engine is turned off.

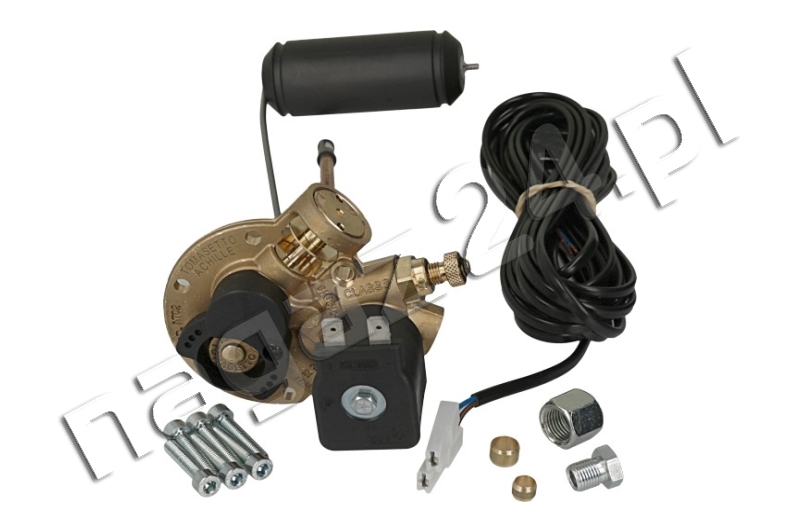

Multivalve size 200/90ᵒ, for a tank with a diameter of 200 millimeters, with the multivalve seat positioned vertically at the top of the tank, in the DX version with the hoses exiting the head to the right. Socket for a copper power cable with a nominal diameter of 8 millimeters with an external thread G1/8 ", and a socket for an output cable to the engine compartment with a nominal diameter of 6 millimeters with an internal thread M10x1 millimeter. Complete with wiring, and an assembly bag in which there are:
- 6 multi-valve mounting bolts,
- a barrel for a power cord with a diameter of 8 millimeters,
- a clamping nut with a G1/8" thread for a barrel with a diameter of 8 millimeters,
- a barrel for the output wire with a diameter of 6 millimeters,
- pressure screw with M10x1 millimeter thread for a barrel with a diameter of 6 millimeters.
Attention:
The set does not include a gas filler and a multi-valve housing.
Multivalve angle: | Vertical 90° |
---|---|
Gas out diameter: | 6 mm |
Hose side: | On left |
For tank with a diameter: | 200 mm |
