Medical rail 4 cylinders purple with sensor
>
Ask about the product
| Type of injector | MED |
|---|---|
| Number of injectors: | 4 |
| product code: | 77.GRO.361 R19 |
|---|---|
| manufacturer: | LANDI RENZO |
| category: | Injectors and accessories LANDI RENZO |
| manufacturer code: | NGK97999 |
| approval number: | E20-67R-010514 |
gross: 338,47 €
net: 275,18 €
In stock
Buy now, we will send on monday. Order in:
45 hours
45 hours
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart
to cart!
X
to cart
338,47 €
Medical rail 4 cylinders purple with sensorProduct code: 77.GRO.361 R19
Copyrights and rules of photo useProduct description:

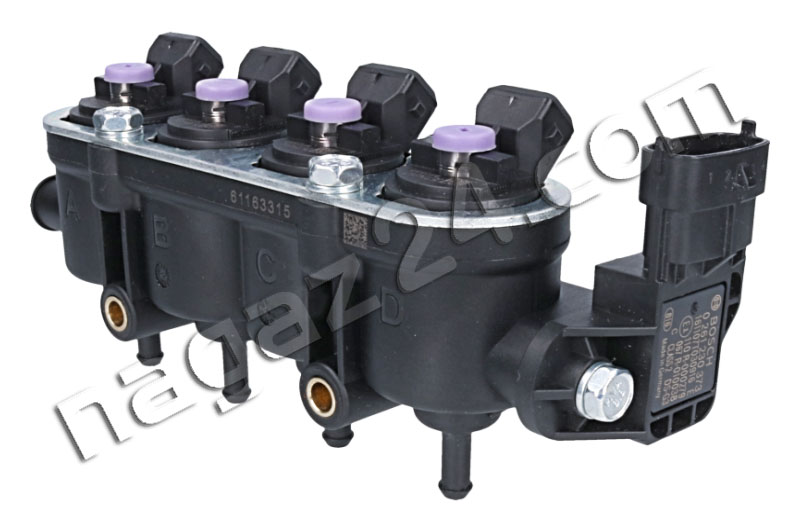

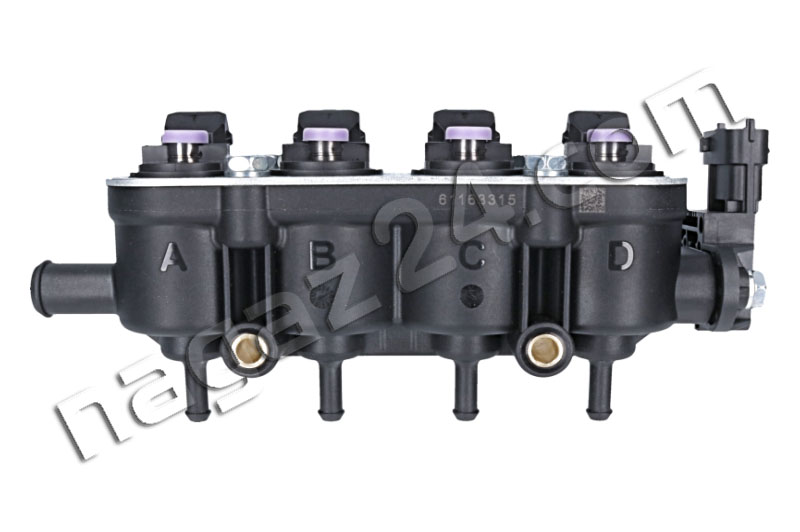

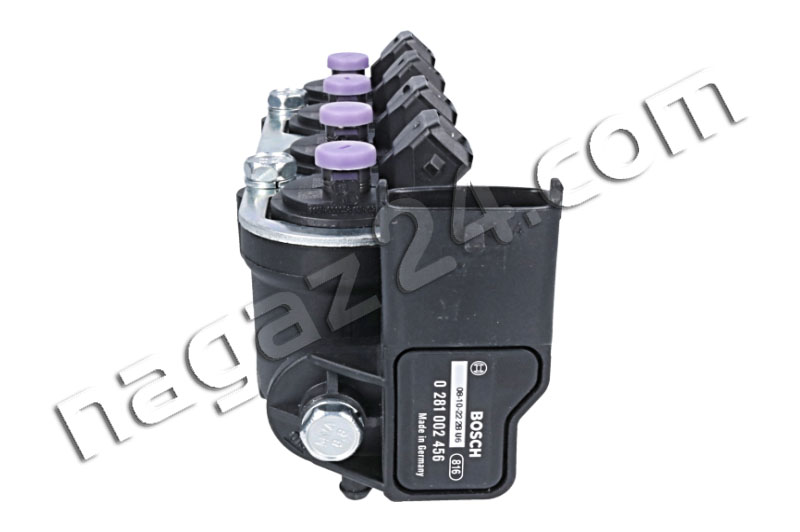

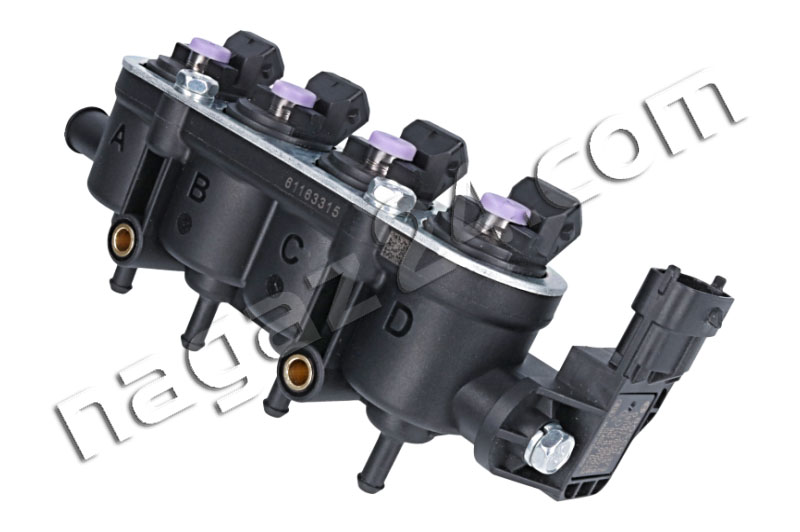

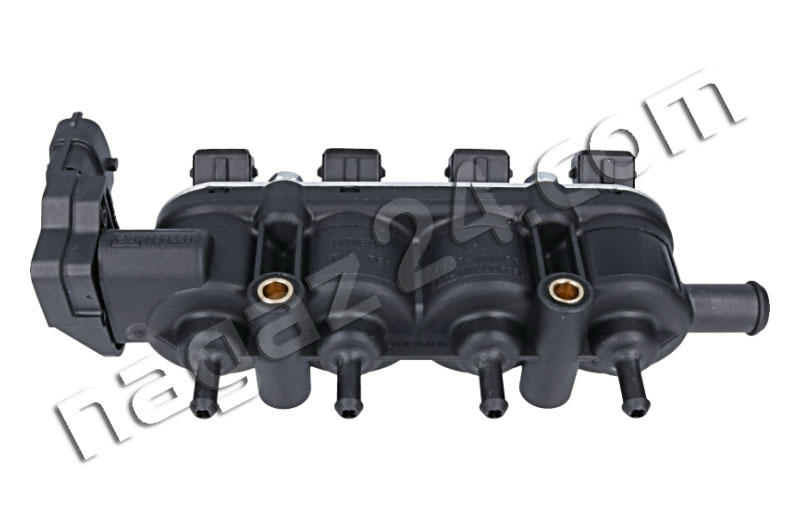

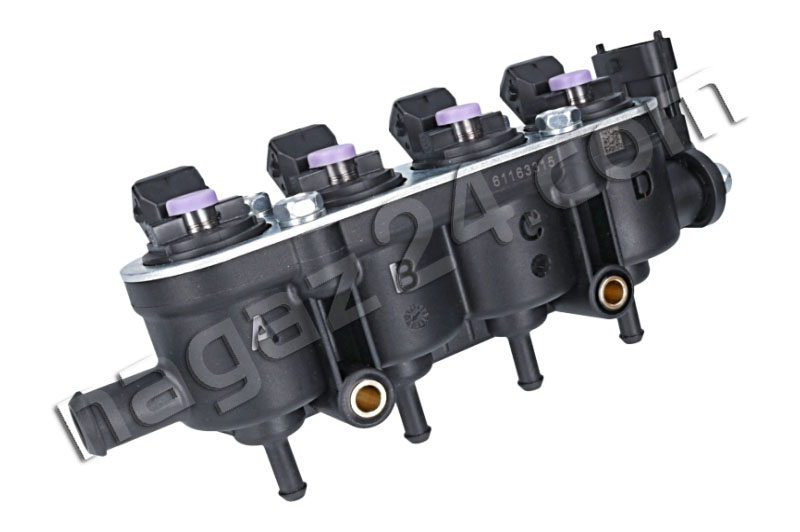

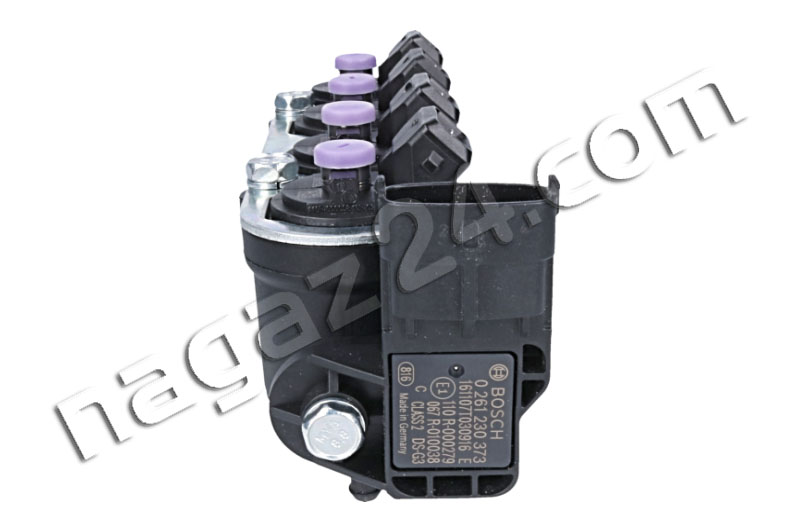

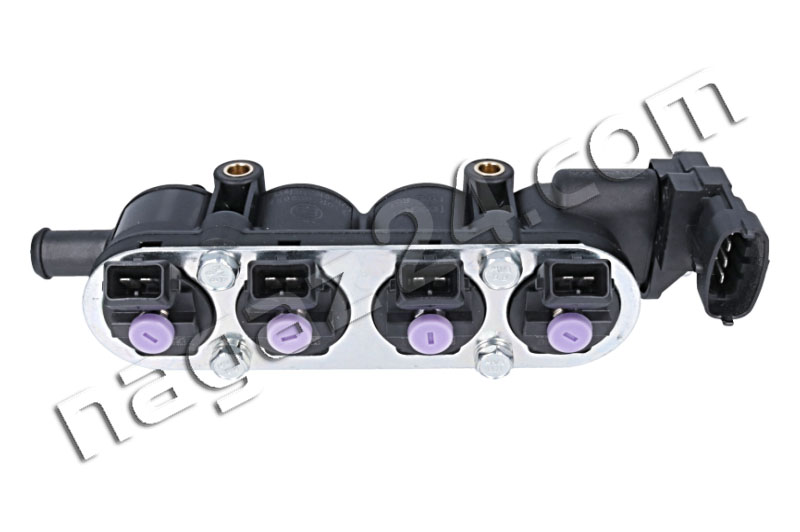

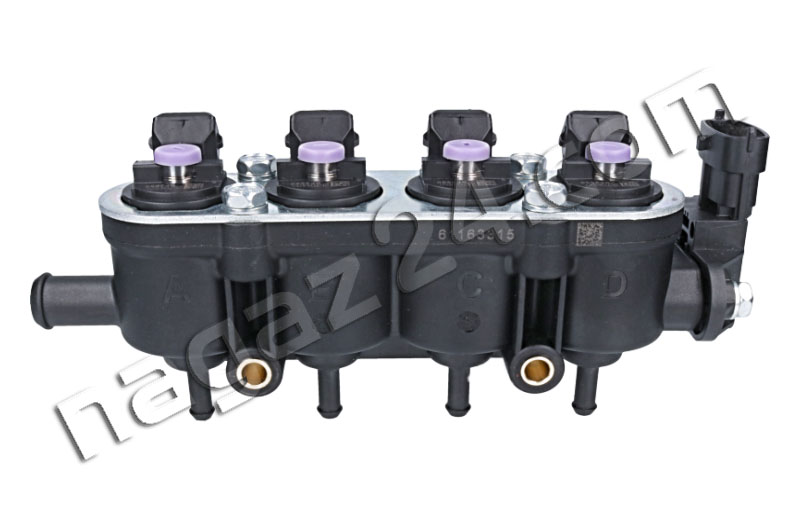

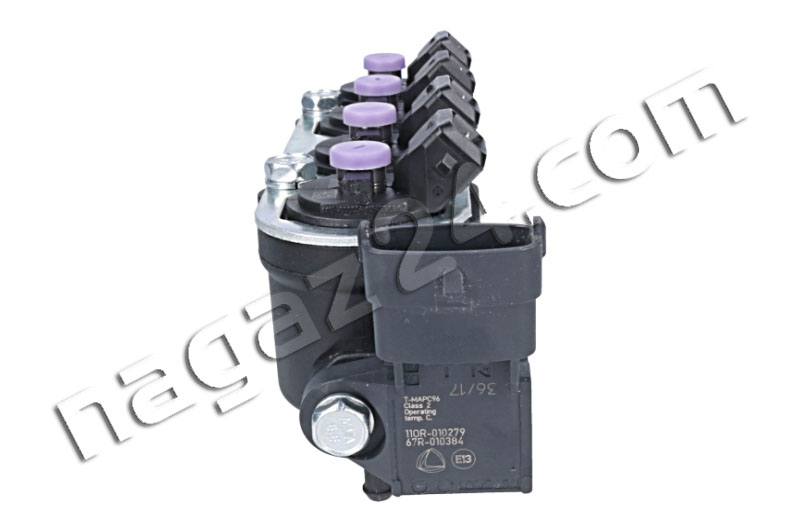

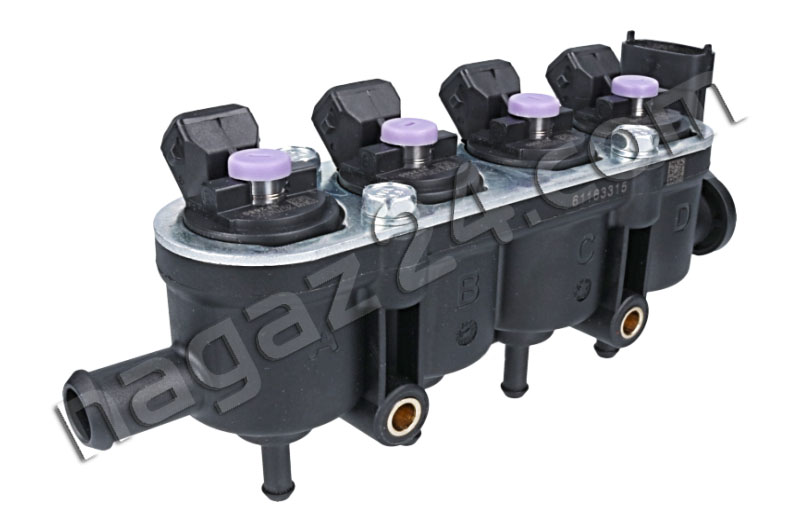

Med injector rail. 4 cyl. with injectors marked in purple. Bosch pressure sensor included.
This is a new version of white 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the metered LPG dose, and more resistant to the accumulation of pollutants.
Description of use:
After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.
Technical specifications:
Output: 25KW - max 40KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold
E13-110R-000057
e3-036228
Features:
| Type of injector | MED |
|---|---|
| Number of injectors: | 4 |
Included parts:
| 1 | x | Med rail 4 cylinders purple without sensor |
| 1 | x | CONTINENTAL T-MAP C96 pressure sensor 3.5 bar |
