Med rail 4 cylinders orange without sensor/blinded
>
Ask about the product
| Type of injector | MED |
|---|---|
| Number of injectors: | 4 |
| product code: | 88.SEM.660 |
|---|---|
| manufacturer: | LANDI RENZO |
| category: | Injectors and accessories LANDI RENZO |
| manufacturer code: | FUB |
| approval number: | EN 228:2008 |
gross: 313,12 €
net: 254,57 €
Out of stock
Shipping in:
Product temporarily unavaliable. Ask the seller.
Product temporarily unavaliable. Ask the seller.
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart!
X
to cart
313,12 €
Med rail 4 cylinders orange without sensor/blindedProduct code: 88.SEM.660
Copyrights and rules of photo useProduct description:

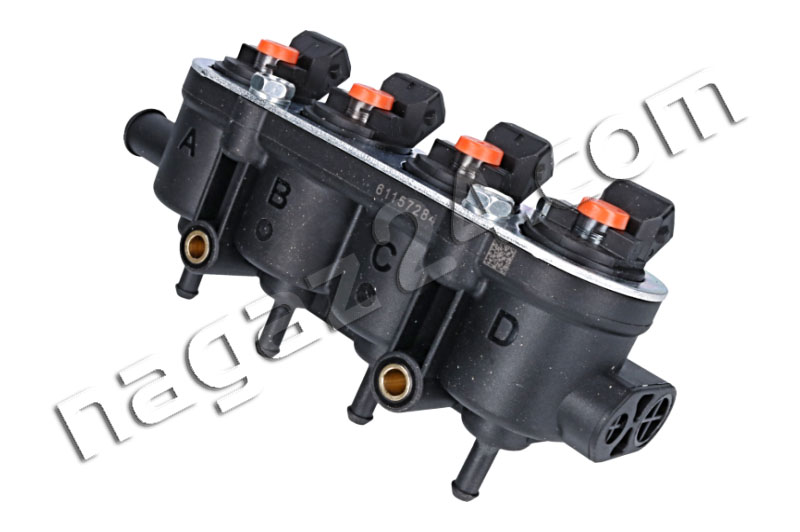

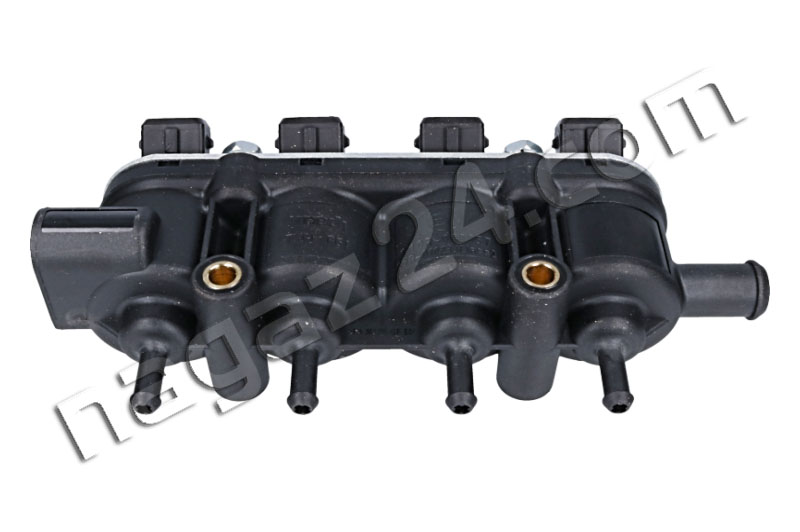

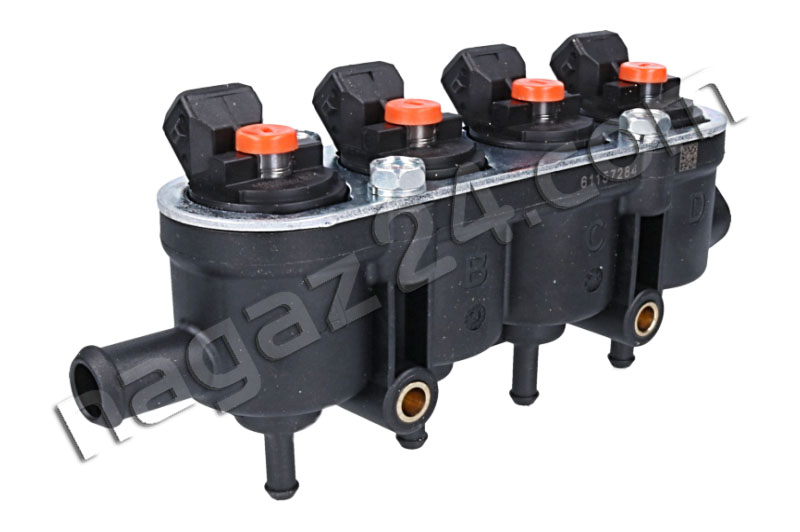

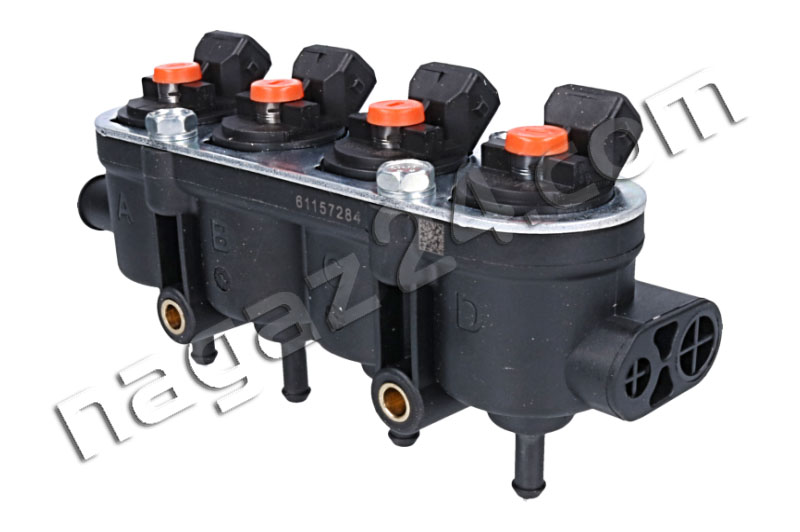

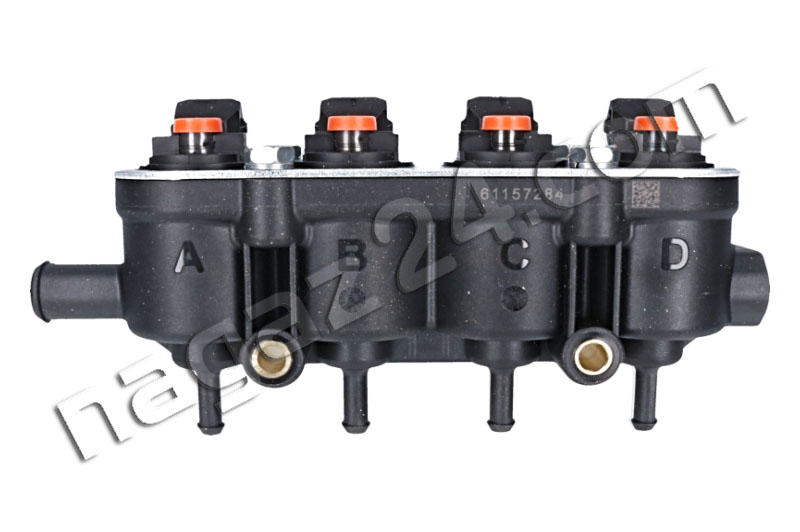

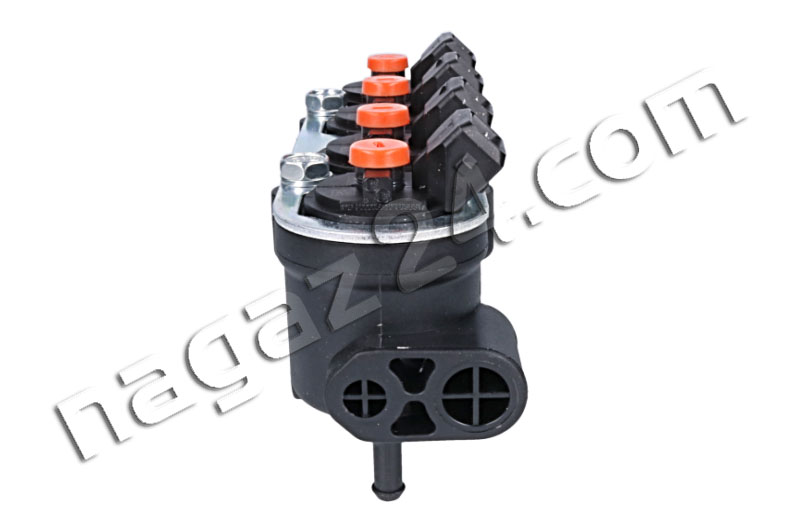

Med injector rail. 4 cyl. with injectors marked orange. The place for the pressure sensor is blinded, the strip is a set for the installation of 8 cyl.
This is a new version of green 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the metered LPG dose, and more resistant to the accumulation of pollutants.
Description of use:
After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.
Technical specifications:
Output: approx. 20 KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold
Features:
| Type of injector | MED |
|---|---|
| Number of injectors: | 4 |
Included parts:
| 1 | x | Body - plastic injector housing 4 cylinders LANDI RENZO - MED closed |
| 4 | x | MED 25-22 injector orange |
