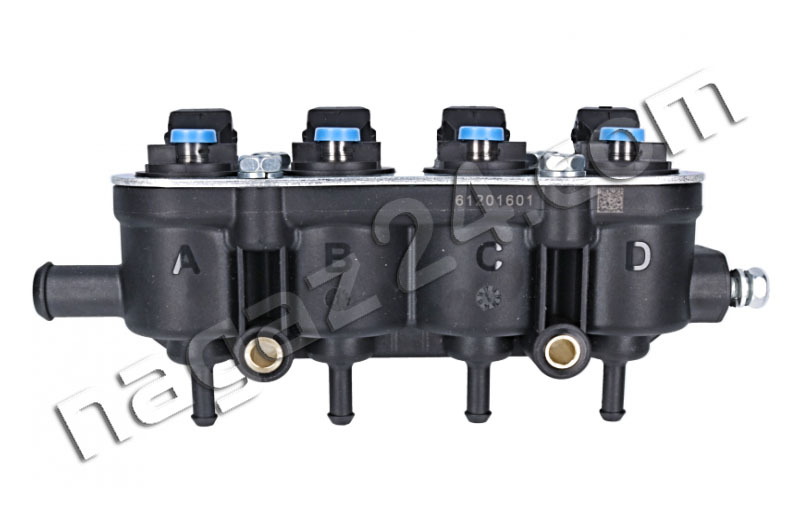

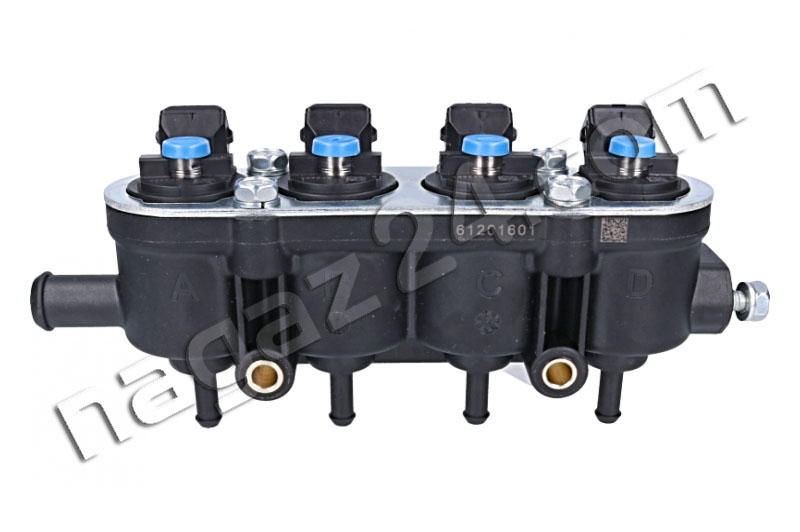

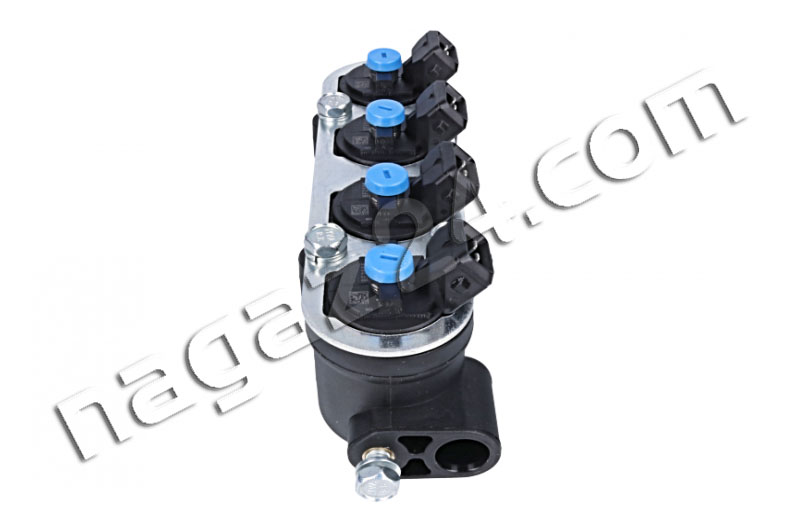

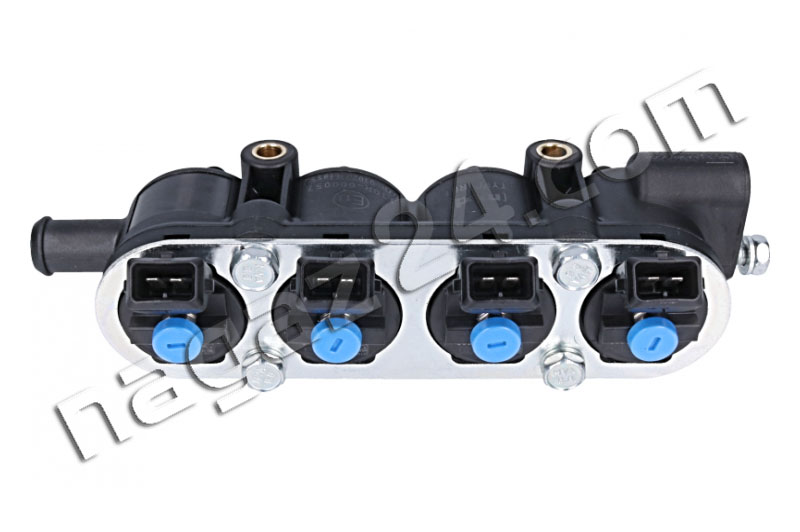

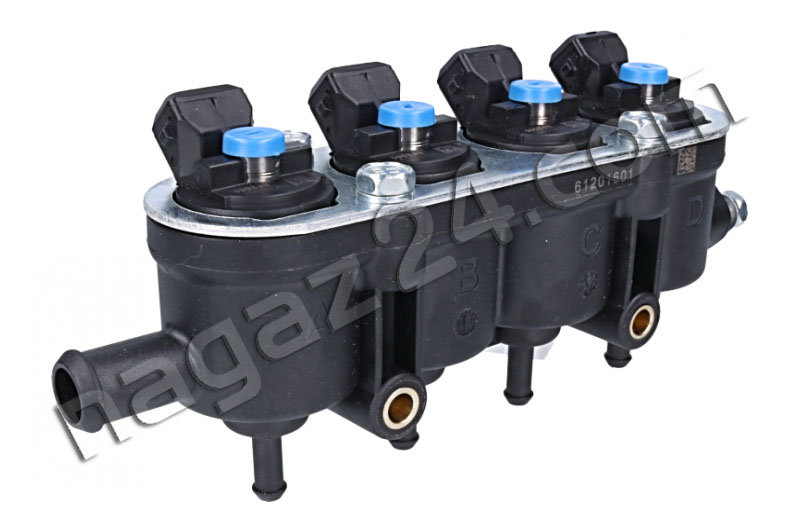

Med rail 4 cylinder blue without sensor

Injection rail MED, 4-cylinder, blue, without sensor - Italian brand MED injector rail for 4-cylinder engines.

MED injector rail, 4-cylinder, blue, without sensor - 4-section MED rail with injectors marked blue, with a place for connecting a Bosch pressure sensor.

MED injection rail, 4-cylinder, blue, without sensor - this is a new version of black 4-hole injectors. The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the measured LPG dose and to the deposition of pollutants.

After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors

It is unacceptable to use 4- and 12-hole injectors in one rail, because they have different flow characteristics at low loads and low engine crankshaft speeds.

MED injection rail, 4-cylinder, blue, without sensor :

• efficiency - allows to operate engines with power up to 15 to 28 kW/cylinder,
• response time - 1.7 ms +/-0.2,
• operating temperature - from -40 to +120 degrees C (R110),
• test pressure - 3 bar,
• maximum sustain power - 1 W,
• working system - Peak and Hold.
