Med rail 4 cylinder blue with sensor
>
Ask about the product
| Type of injector | MED |
|---|---|
| Number of injectors: | 4 |
| product code: | 77.GRO.360 |
|---|---|
| manufacturer: | LANDI RENZO |
| category: | Injectors and accessories LANDI RENZO |
| manufacturer code: | NGK97999 |
| approval number: | E20-67R-010514 |
gross: 337,91 €
net: 274,72 €
In stock
Buy now, we will send on monday. Order in:
45 hours
45 hours
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart
to cart!
X
to cart
337,91 €
Med rail 4 cylinder blue with sensorProduct code: 77.GRO.360
Copyrights and rules of photo useProduct description:

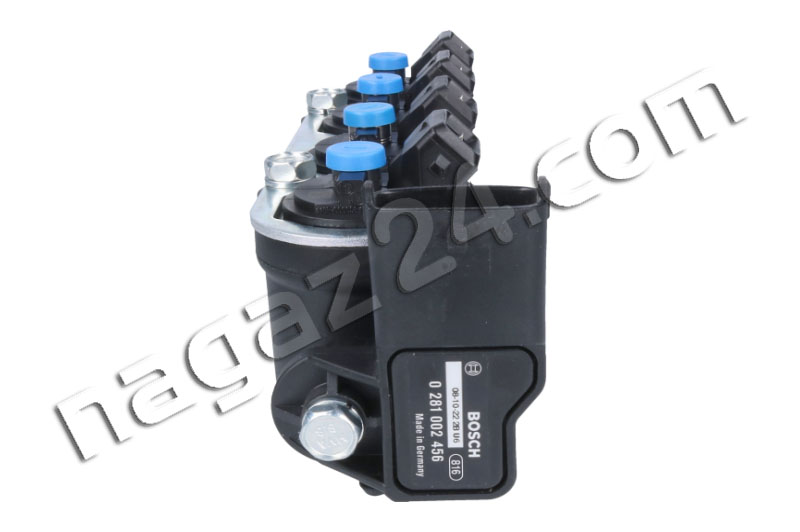

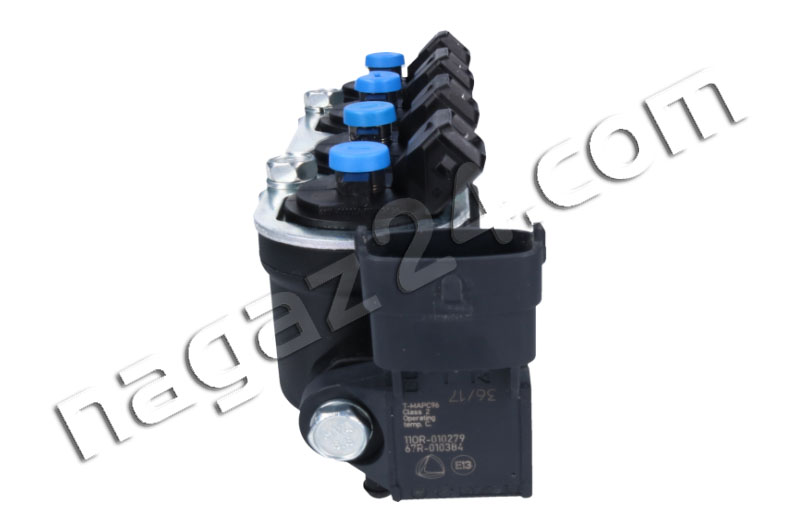

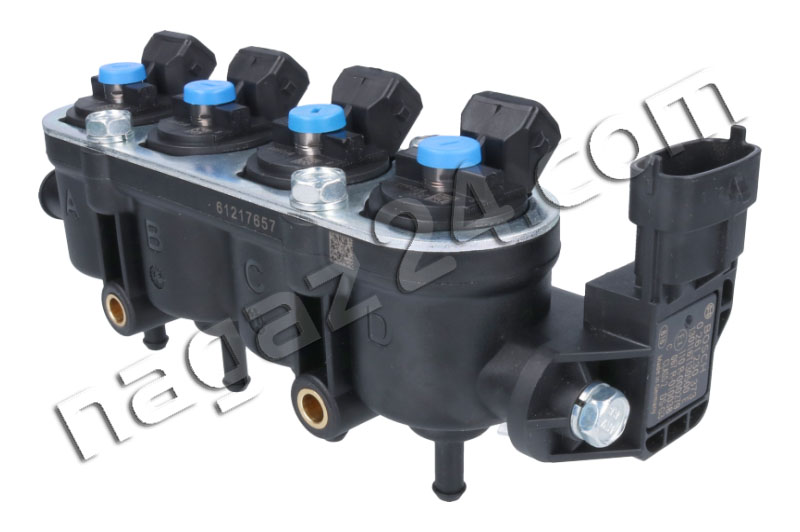

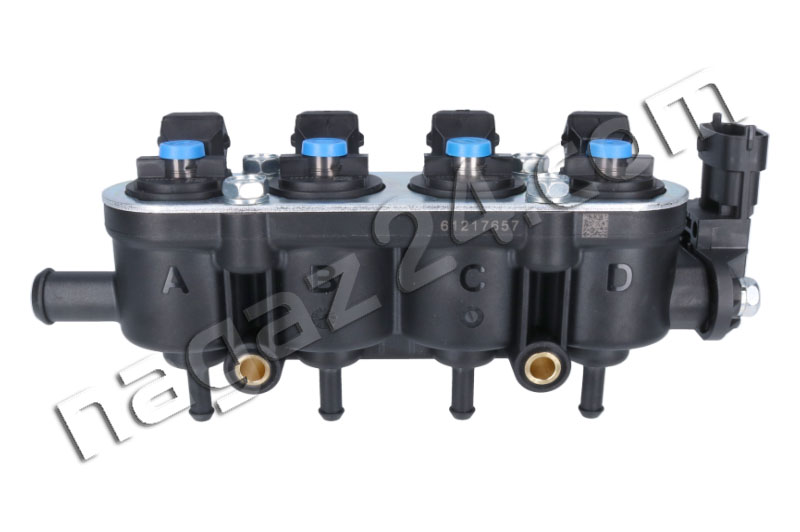

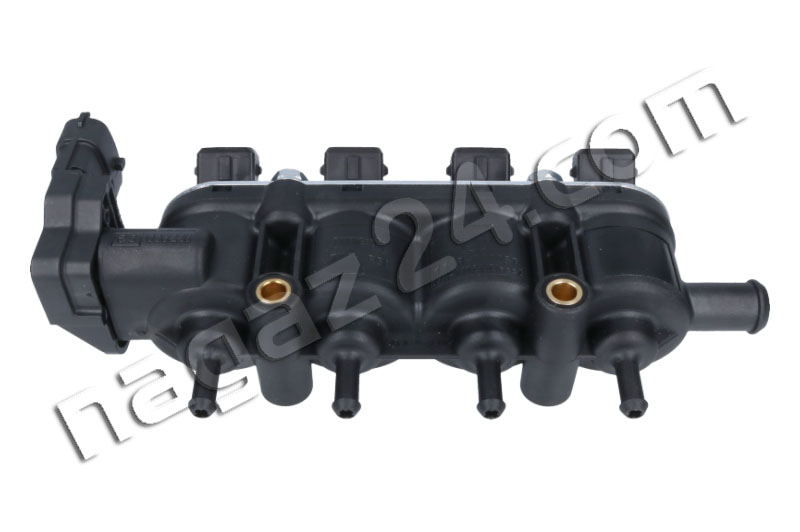

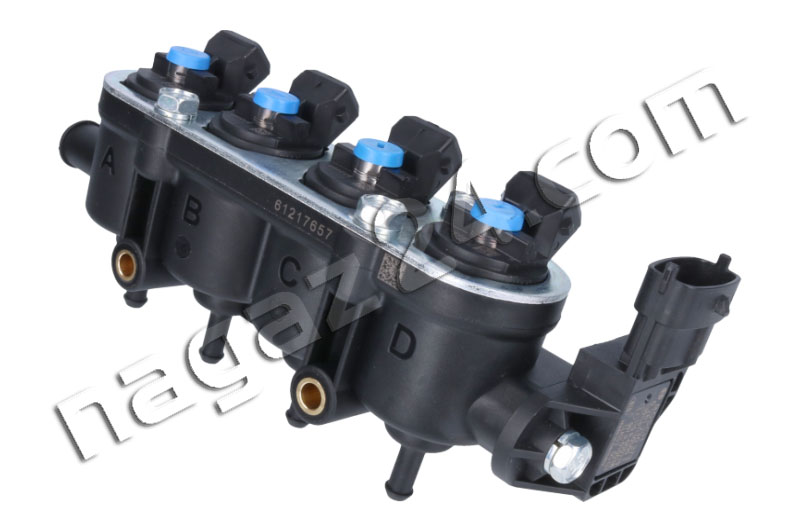

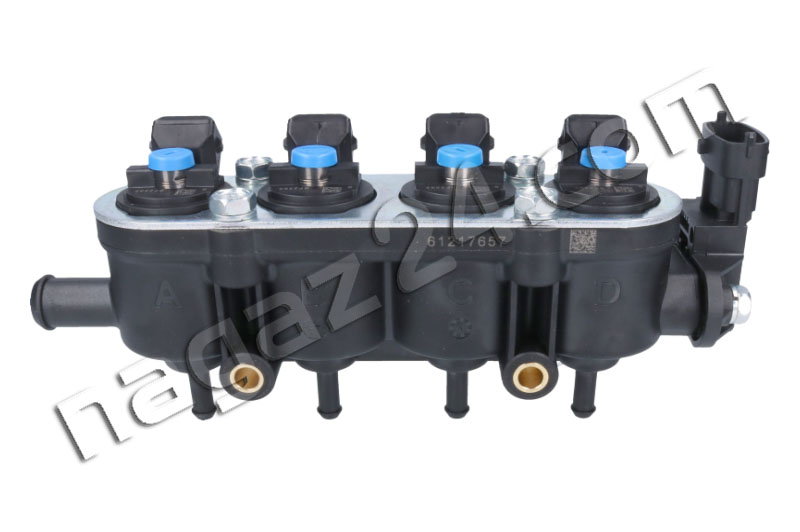

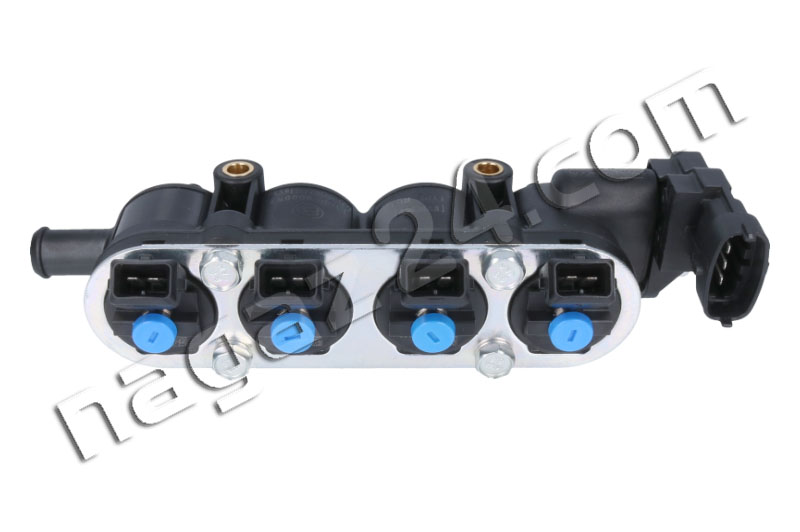

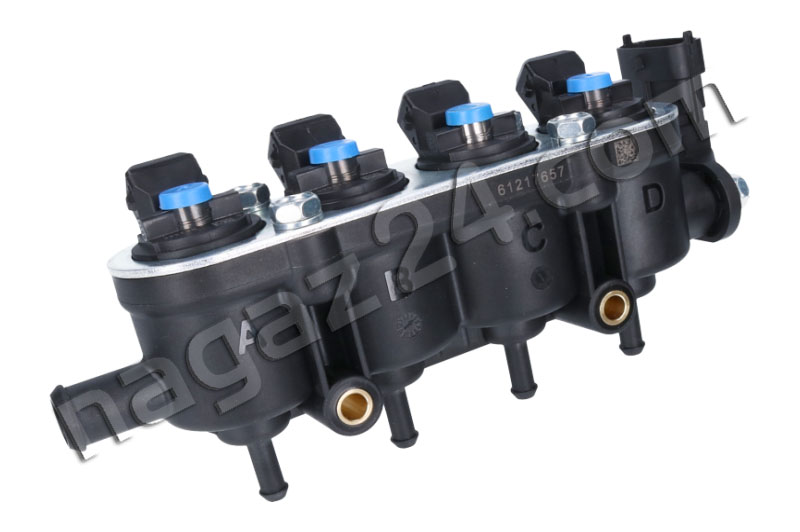

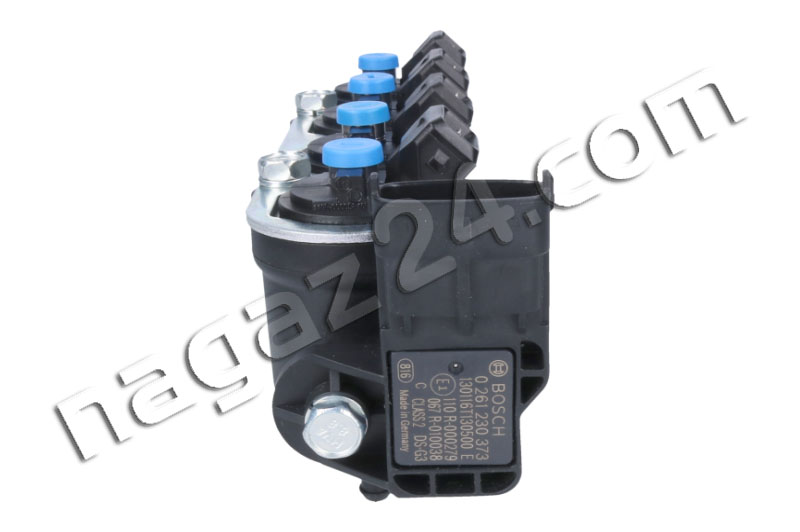

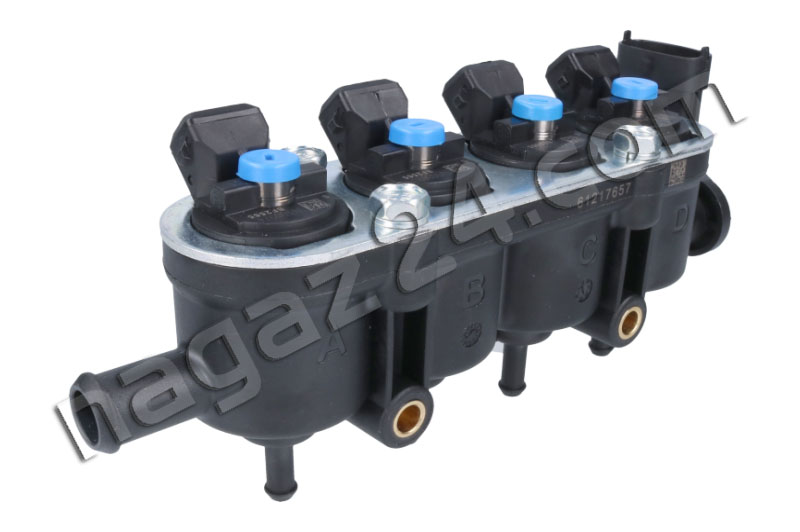

Med injector rail. 4 cyl. with injectors marked in blue. Complete with Bosch pressure sensor.
This is a new version of black 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the measured LPG dose, and more resistant to the accumulation of pollutants.
Description of use:
After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.
Technical specifications:
Output: 15KW - 28 KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold
Features:
| Type of injector | MED |
|---|---|
| Number of injectors: | 4 |
Included parts:
| 1 | x | Med rail 4 cylinder blue without sensor |
| 1 | x | BOSCH pressure sensor |
