Med rail 3 cylinder blue without sensor
>
Ask about the product
| Type of injector | MED |
|---|---|
| Number of injectors: | 3 |
| product code: | 77.GRO.360 |
|---|---|
| manufacturer: | LANDI RENZO |
| category: | Injectors and accessories LANDI RENZO |
| manufacturer code: | NGK97999 |
| approval number: | E20-67R-010514 |
gross: 214,12 €
net: 174,08 €
Out of stock
Shipping in:
5-7 days
5-7 days
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart!
X
to cart
214,12 €

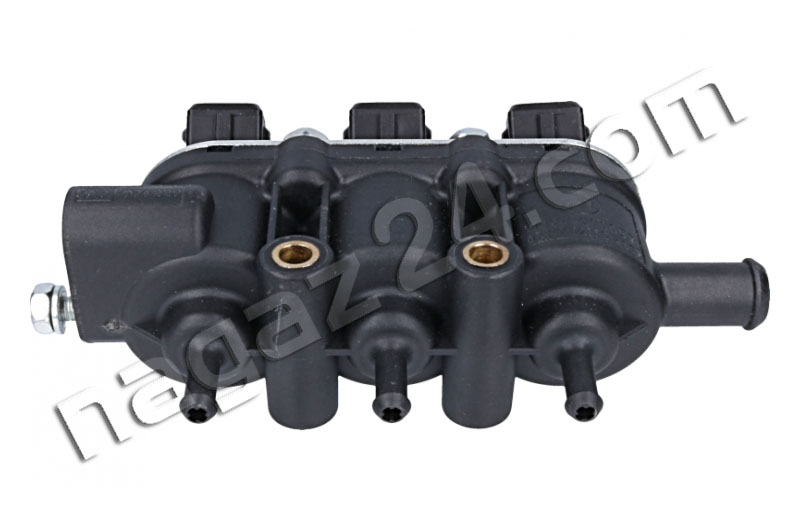

Med rail 3 cylinder blue without sensorProduct code: 77.GRO.360
Copyrights and rules of photo useProduct description:
Med injector rail. three-cylinder with injectors marked in blue. With a place for the pressure sensor (without the sensor in the set, the strip is part of the three-, five- and six-cylinder installation sets.
This is a new version of black 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the metered LPG dose, and more resistant to the accumulation of pollutants.
Description of use:
After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.
Technical specifications:
Output: 15KW - 28 KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold
E13-110R-000057
Type RGI
Features:
| Type of injector | MED |
|---|---|
| Number of injectors: | 3 |
Included parts:
| 1 | x | MED plastic injector RAIL housing with sensor port (3 cyl.) |
| 3 | x | MED 25-65 injector blue |
