| Type of injector | MED |
|---|---|
| Number of injectors: | 2 |
| product code: | 77.STA.317 |
|---|---|
| manufacturer: | LANDI RENZO |
| category: | Injectors and accessories LANDI RENZO |
| manufacturer code: | NGK97999 |
| approval number: | E20-67R-010426 |

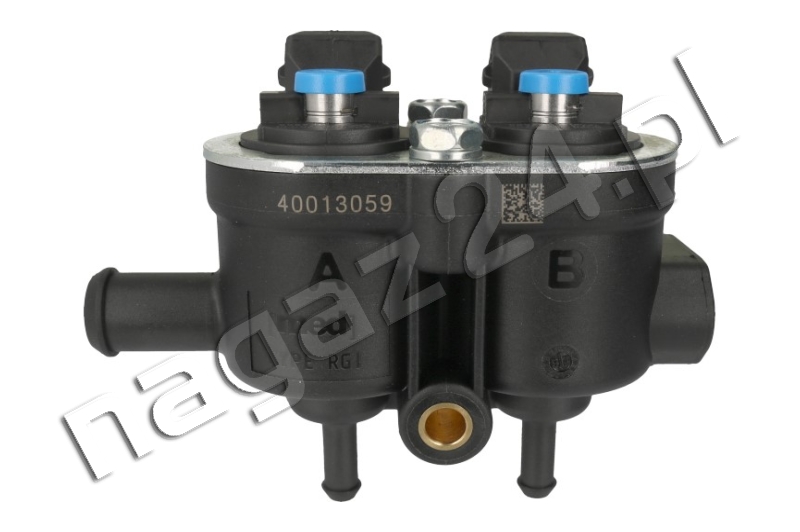

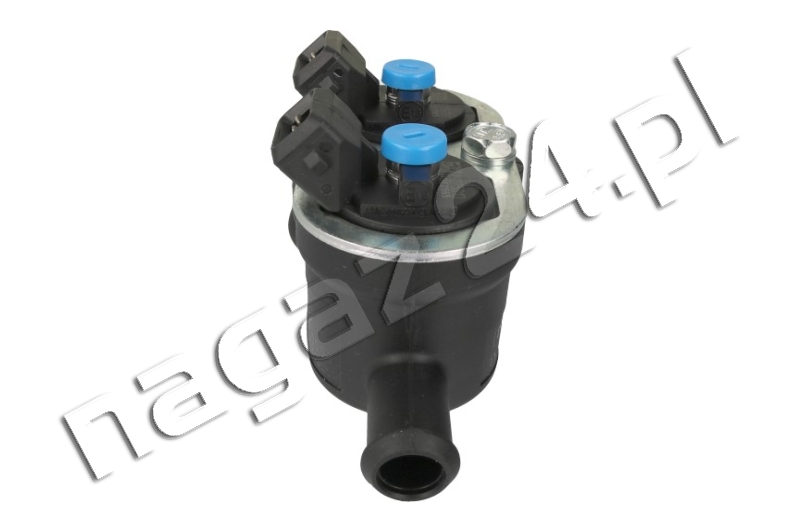

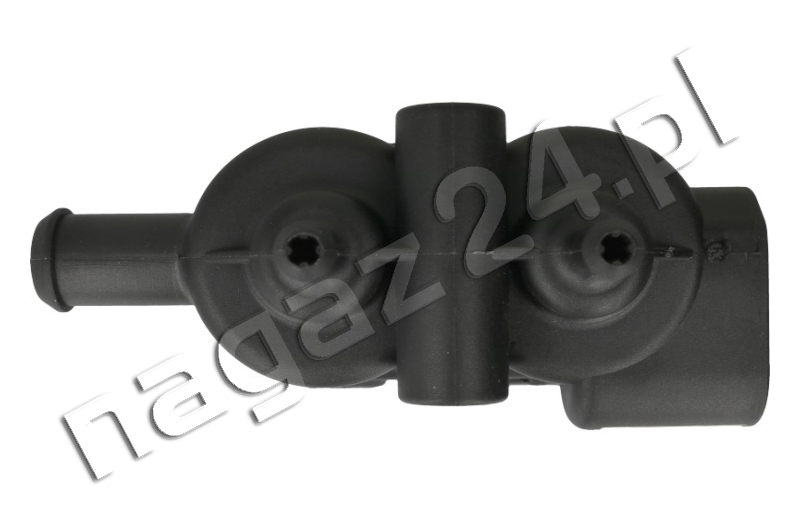

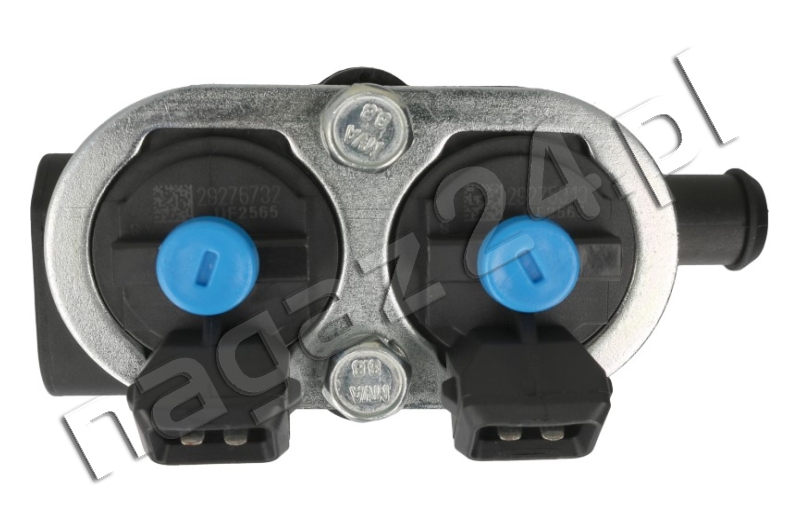

Med injector rail. 2 cyl. with injectors marked in blue. The place for the pressure sensor is blinded, the strip is a set for the installation of a 4 cyl. Boxer type, or 5 cyl.
This is a new version of black 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the measured LPG dose, and more resistant to the accumulation of pollutants.
After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.
Output: 15KW - 28 KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold
E13-110R-000057
Type RGI
| Type of injector | MED |
|---|---|
| Number of injectors: | 2 |
| 1 | x | Body - plastic injectors housing 2 cyl. med closed |
| 2 | x | MED 25-65 injector blue |
