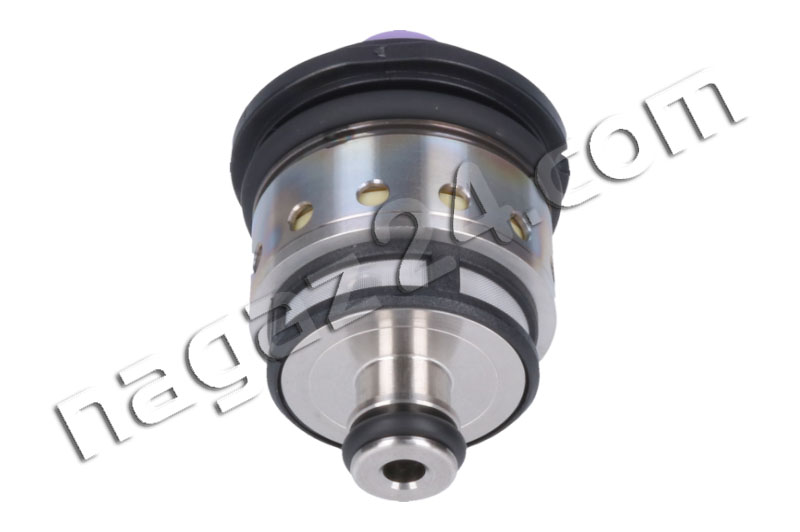

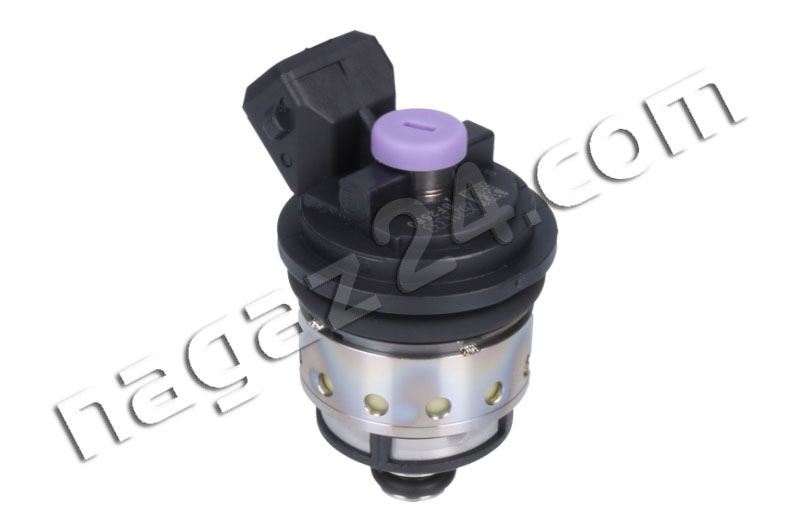

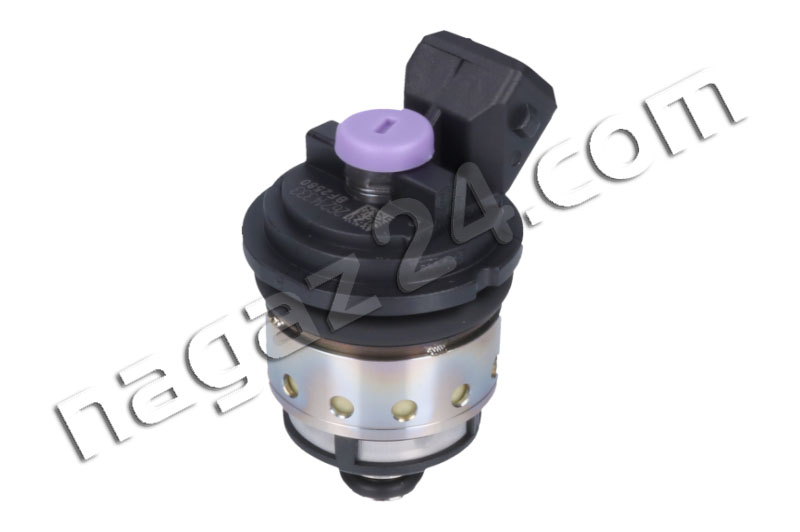

MED GI25-80 injector purple

Injector MED GI25-80 purple - original injector for the Landi Renzo MED rail. The new 12-hole version with the purple marking is the successor to the white MED injector.

MED GI25-80 purple injector - this is a new version of white 4-hole injectors.

MED GI25-80 purple injectors - have improved flow linearity, are more resistant to pulsating dose of measured LPG, more resistant to the accumulation of impurities.

After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors.

NOTE: It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.

MED GI25-80 injector purple :

• large injector 25-80,
• marked with a purple cap on top,
• designed for engines whose power per cylinder is between 25 and 40 kW,
• response time - 1.7 ms +/- 0.2,
• operating temperature - from -40 to 120 degrees C (R110),
• test pressure - 3 bar,
• maximum sustain power - 1 W,
• working system - Peak and Hold,
• approvals - E3 036229, E13-110R-000058, E3-10R-036317,
• Type GI25
