MED 25-65 injector blue

Injector MED 25-65 blue - original LPG injector in the volatile phase by MED.

This is a new version of MED black 4-hole injectors.

The new injectors are 12-hole, marked in blue. They improve the linearity of the flow, are more resistant to the pulsation of the measured LPG dose, and more resistant to the accumulation of pollutants.

Injector MED 25-65 blue - used in automotive gas installations of the 4th generation (sequential gas injections in the volatile phase).

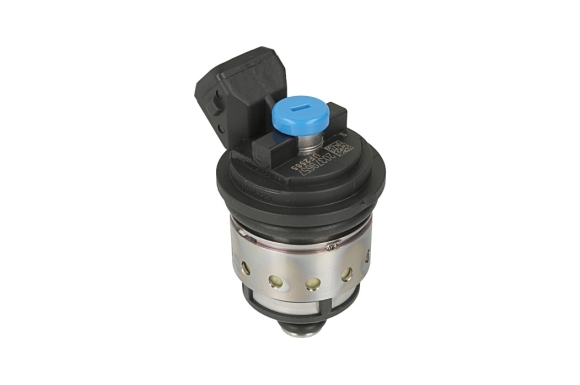

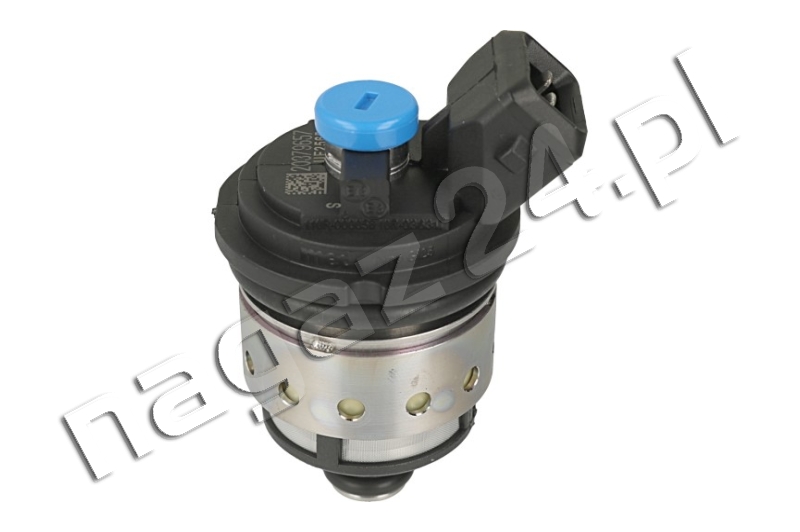

Blue MED 25-65 injector - small 25-65 injector marked with a blue cap on top. Its efficiency allows it to power engines with a power per cylinder of 15 to 28 kW.

After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors.

NOTE: It is unacceptable to use 4- and 12-hole injectors in one rail due to their different flow characteristics at low loads and low engine speeds.

MED 25-65 blue injector :

• efficiency (output) - 15 to 28 kW,
• response time - 1.7 ms +/- 0.2,
• working temperature - from -40 to 120 degrees C,
• test pressure - 3 bar,
• maximum sustain power - 1 W,
• working system - Peak and Hold,
• approvals E3 036229, E13 67R-010234, E13-110R-000058, E3-10R-036317,
• Type GI25.
