Placement of sensor: | on hose |
---|---|
Temperature sensor: | Yes |
Sensor resistance: | 4.7 kOhm |
product code: | 90.WAR.209 |
---|---|
manufacturer: | EUROPEGAS |
category: | ECU's EUROPEGAS |
manufacturer code: | 12mx12mmx0,1mm |
approval number: | EN 751-3 FRp |

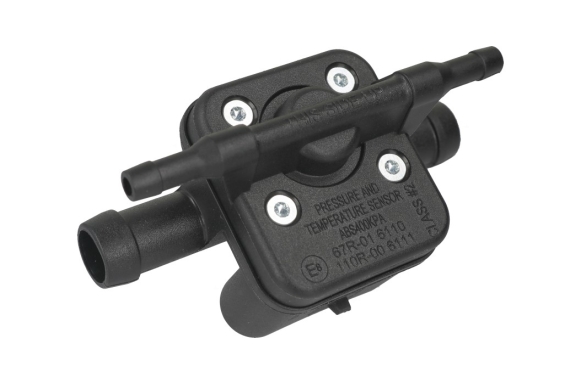

The EuropeGAS ABS400KPA device is designed to collect information about gas pressure and temperature in the passage. Equipped with two connectors with a diameter of 12mm dedicated to the gas hose and two connectors fi 4mm for vacuum. The map sensor has a 5-pin connector.
Mapsensor dedicated to all Europegas injection systems. Both LPG and CNG.
Operating voltage range: 9-16V (nominal 12V).
Output voltage of pressure sensors 0-5V.
Measuring range of pressure sensors: 0-400kPa.
Maximum overload of pressure sensors: 1600 kPa.
Vacuum connectors adapted to connect the D4 hose.
NTC 4k7 temperature sensor.
Super-tight AMP type connector (5-pin).
Operating temperature range of the gas temperature sensor from -25 degrees C to +120 degrees C.
