LIQUID FILTER JTG ICOM TO PUMP CARTRIDGE mesh
>
Ask about the product
| Type of part: | original |
|---|---|
| Upper external diameter | 12 mm |
| Upper hole diameter | 8 mm |
| Lower external diameter | 12 mm |
| Lower hole diameter | 8 mm |
| Height: | 120 mm |
| product code: | 32.VAL.994 |
|---|---|
| manufacturer: | CERTOOLS |
| category: | Filters CERTOOLS |
| manufacturer code: | 97.PPM.01 |
| approval number: | E4-67R-010181 |
gross: 13,02 €
net: 10,59 €
In stock
Buy now, we will send tomorrow. Order in:
18 hours 48 minutes
18 hours 48 minutes
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart
to cart!
X
to cart
13,02 €
LIQUID FILTER JTG ICOM TO PUMP CARTRIDGE meshProduct code: 32.VAL.994
Copyrights and rules of photo useProduct description:

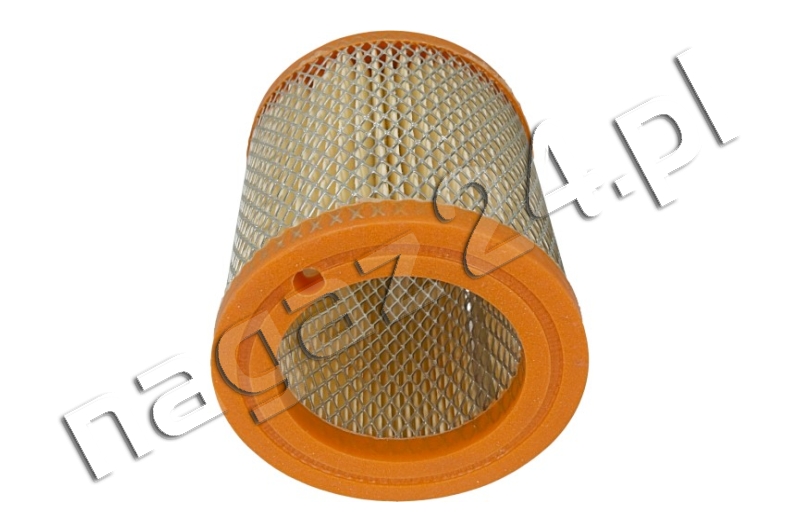

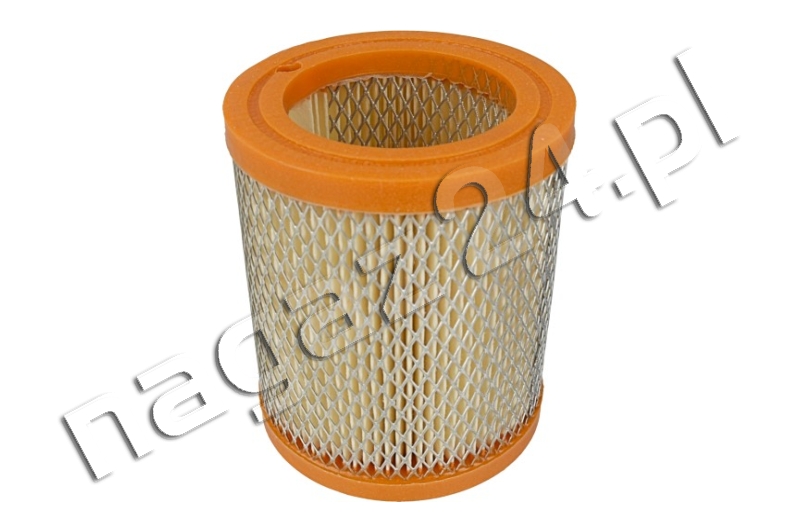

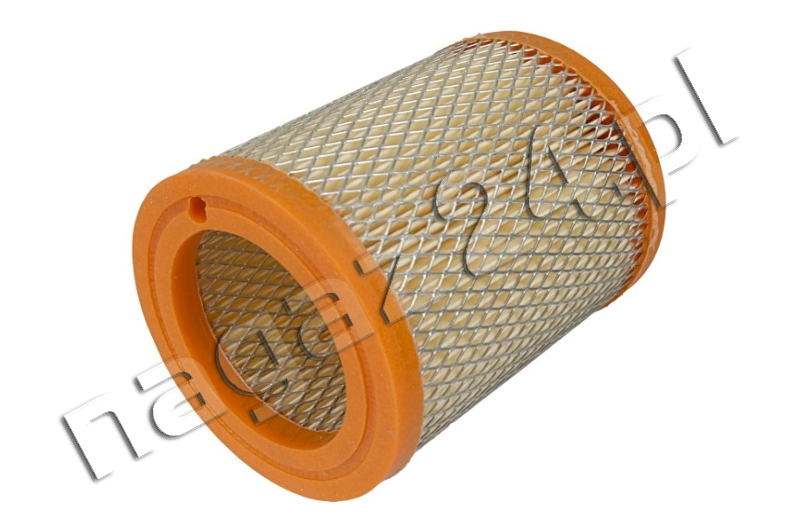

The JTG liquid phase filter is a high quality product. This filter is extremely effective in removing impurities from the liquid, which allows you to maintain the proper operation of the gas installation. The mesh insert provides even better filtration, which translates into a longer life of the entire system.
Description of use:
The JTG liquid phase filter is dedicated to the ICOM LPG system. It is mounted inside the tank on the suction part of the gas pump. This filter is an essential element when servicing ICOM installations.
Technical specifications:
- Manufacturer: CERTOOLS
- Manufacturer's product code: CI-245-0-0-0Z
- Product Category: Filters » Liquid Phase » Cartridges
- Dimensions: 120x60mm
- Inner diameter: 8mm
- Outer diameter: 12mm
- Material: plastic
- Insert: mesh
- Maximum flow: 50 l/h
- Maximum pressure: 10 bar
Features:
| Type of part: | original |
|---|---|
| Upper external diameter | 12 mm |
| Upper hole diameter | 8 mm |
| Lower external diameter | 12 mm |
| Lower hole diameter | 8 mm |
| Height: | 120 mm |
Product compliance details: » Person responsible for the product » Security, compliance and warnings
