Type of injector | VALTEK TYP 34 |
---|---|
Number of injectors: | 4 |
product code: | 77.STA.313 R19 |
---|---|
manufacturer: | VALTEK |
category: | Injectors and accessories VALTEK |
manufacturer code: | NGK97999 |
approval number: | E20-67R-010426 |

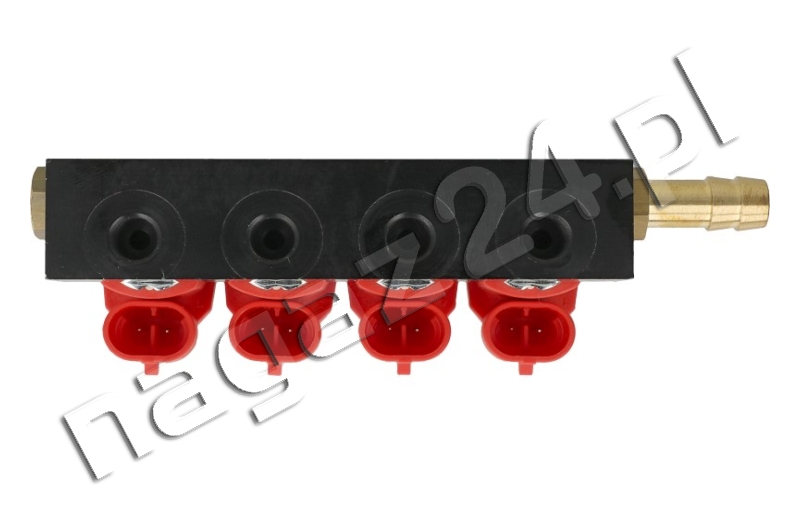

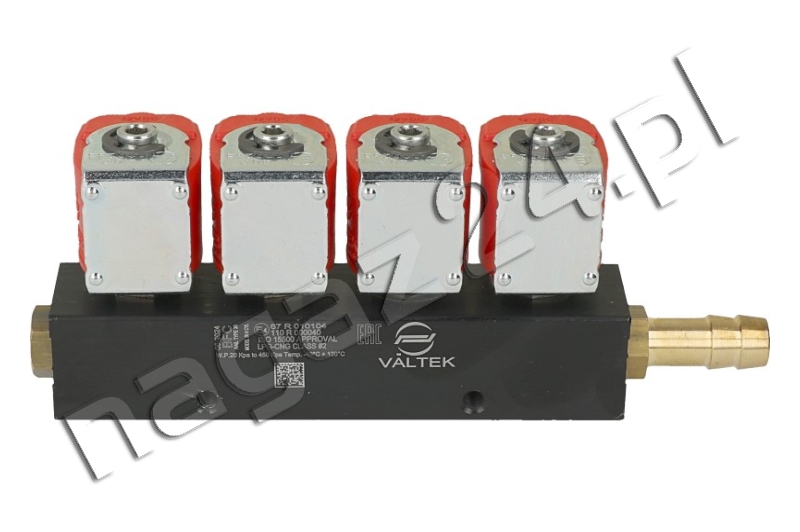

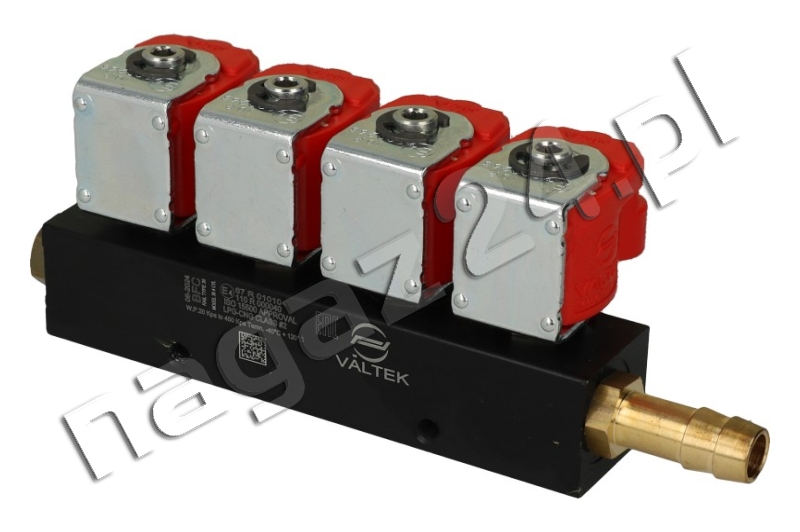

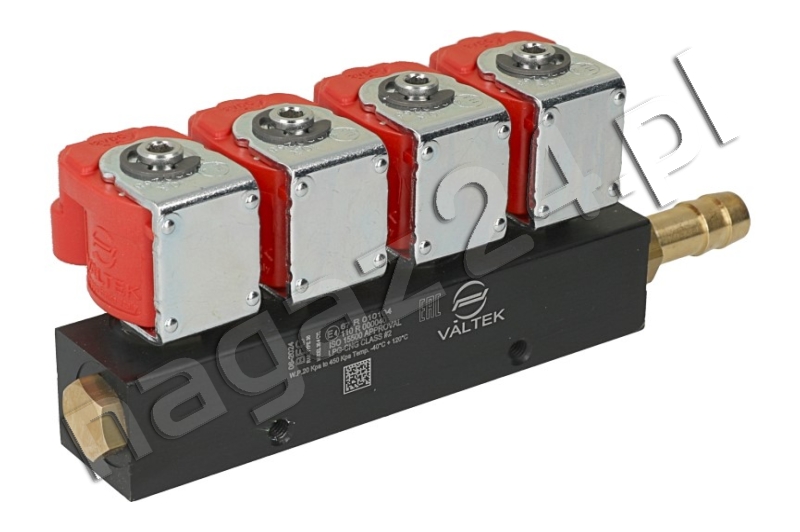

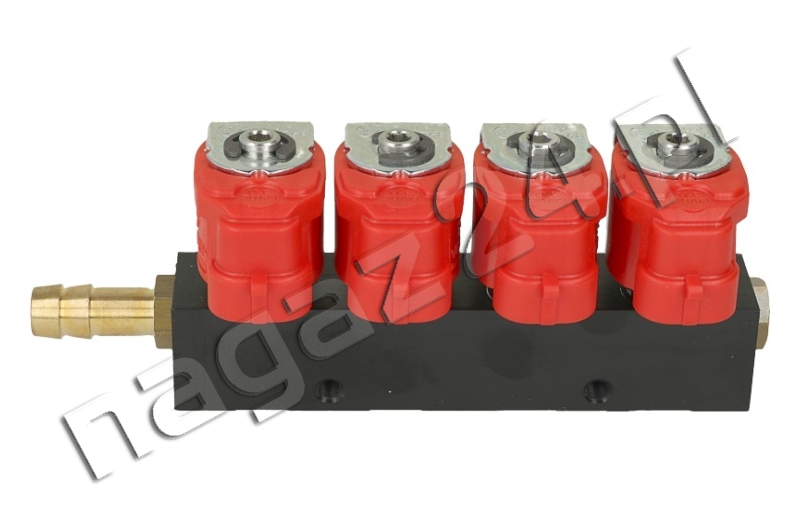

Four-cylinder injection rail with a metal body, Type 30 BFC from the Italian company Valtek.
ATTENTION:
Calibration nozzles not included.
The rail is designed for fourth generation sequential gas injection systems in the volatile phase, installed in cars with four or eight cylinder engines.

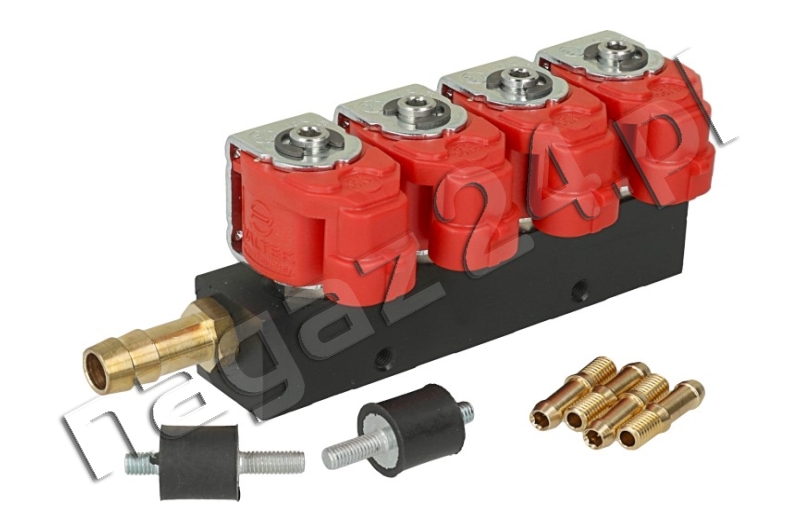

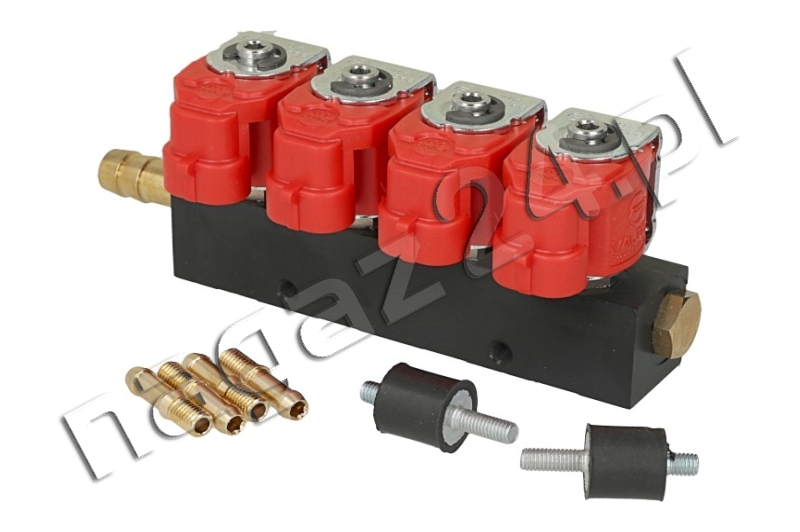

VALTEK injector rail - 4 cylinders BFC - with increased flow, coil resistance 3Ω, two-pin superseal injector sockets, gas inlet stub pipe with an outer diameter of 10.4 millimeters, one end cap of the bar body stub pipe with a sealing O-ring, two metal-rubber cushions for fastening the rail with M5 thread, four nozzles for the intake manifold with an Allen key with an M6 thread with an outer diameter of 4.5 millimeters.
RAIL TYPE 30
E4-67R-010104
E4-110R-000040
Type of injector | VALTEK TYP 34 |
---|---|
Number of injectors: | 4 |
4 | x | VALTEK type 30 injector RAIL repair kit |
4 | x | VALTEK type 30 injector RAIL arbor |
4 | x | Injector coil 3 Ohm - VALTEK |
1 | x | VALTEK type 30 m12x1 ø12 - internal ø8 RAIL adapter |
4 | x | VALTEK injector coil bracket |
1 | x | VALTEK injector RAIL temperature sensor adapter |
4 | x | VALTEK injector coil seger |
