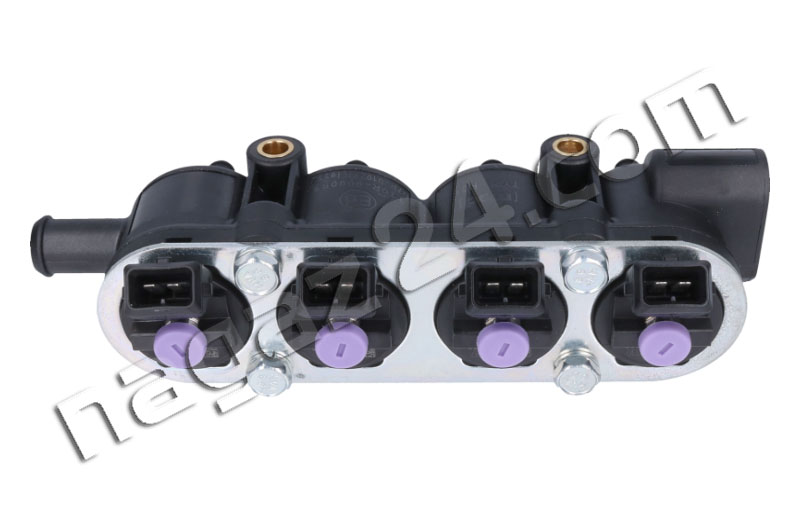

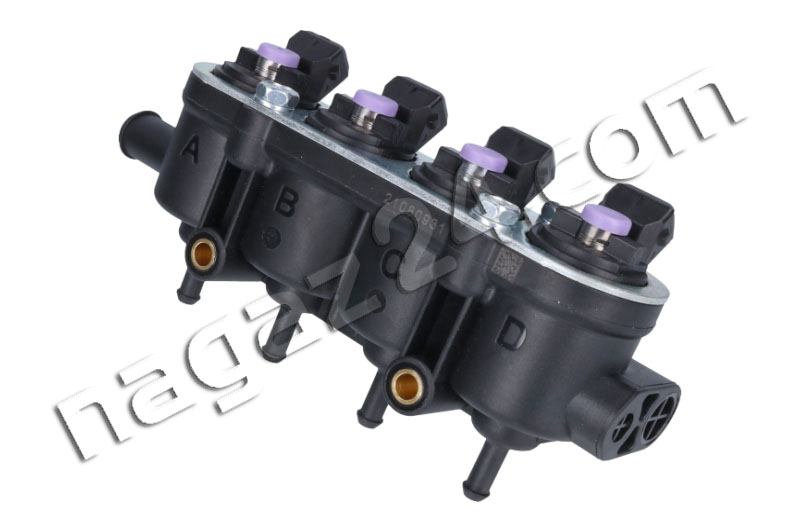

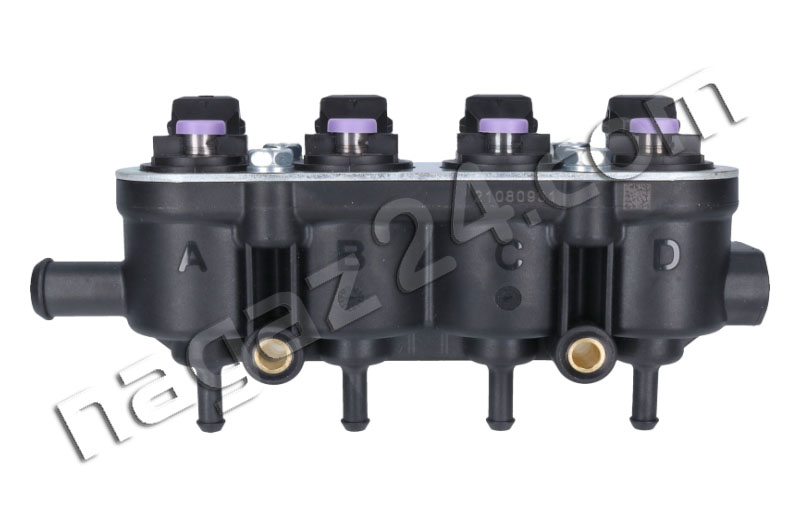

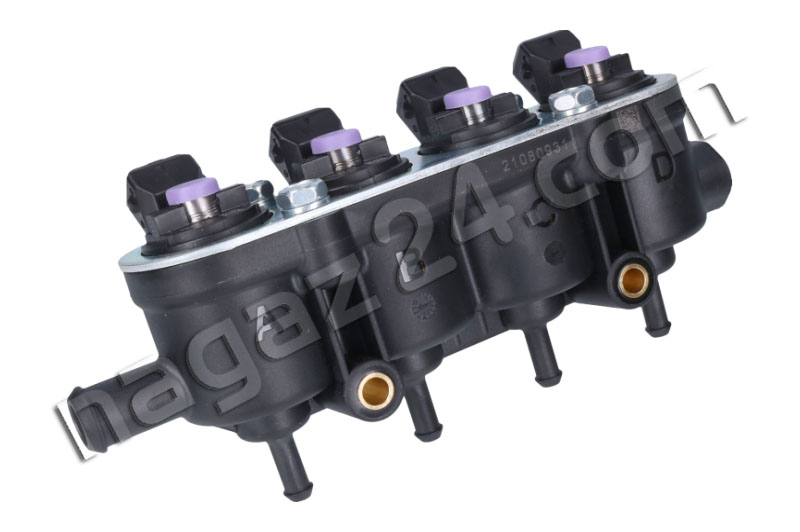

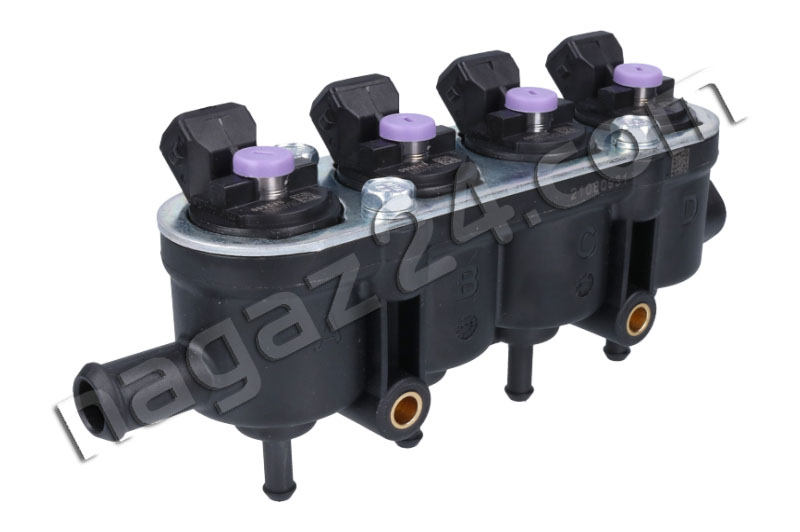

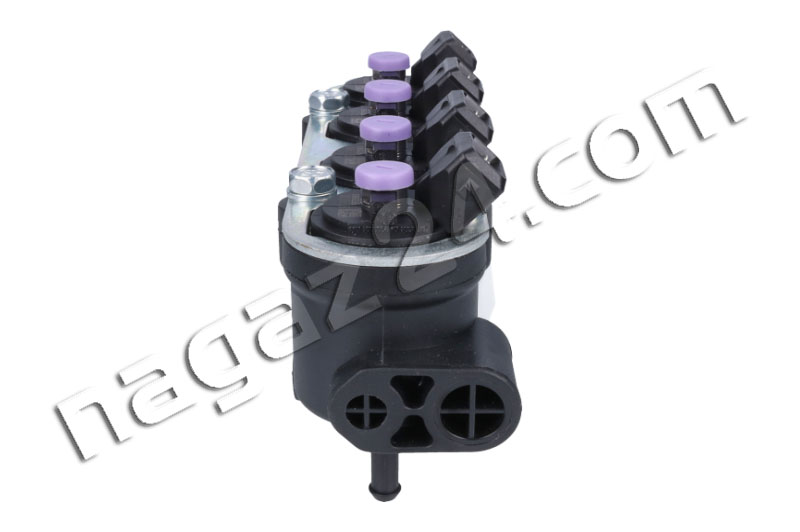

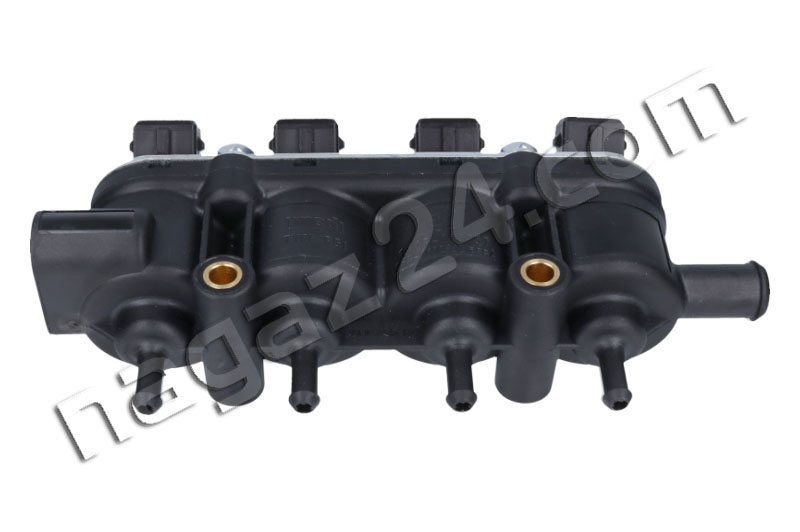

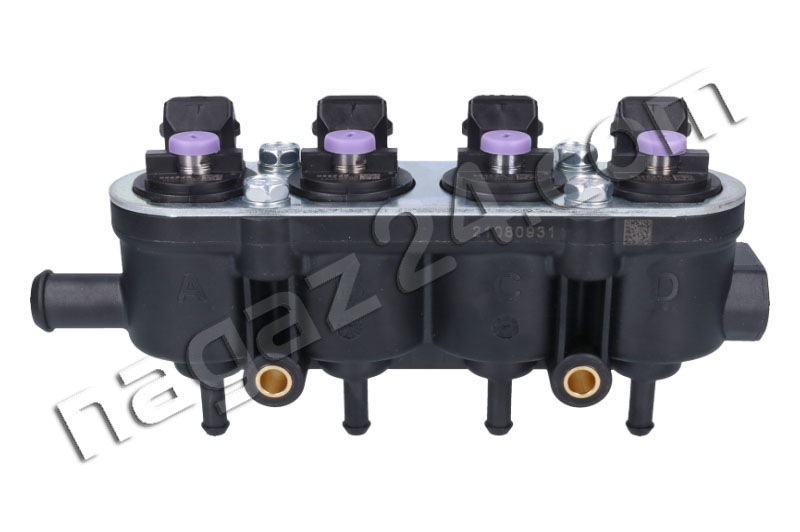

Injection rail MED 4cyl.25-80 Purple blinded

>
MED - Injection rail MED 4cyl.25-80 Purple blinded

Type of injectorMED
Number of injectors:4
product code:51.LRE.600
manufacturer: MED
category:Injectors and accessories MED
manufacturer code:616175000
approval number: E13 67R-010033
Ask about the product
gross: 285,53
net: 232,14 €



Out of stock Shipping in:
Product temporarily unavaliable. Ask the seller.
Delivery from: 5



Added 1 pcs.
to cart!



Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 1 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 2 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 3 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 4 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 5 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 6 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 7 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 8 Injection rail MED 4cyl.25-80 Purple blinded - zdjęcie 9




X to cart
285,53

Injection rail MED 4cyl.25-80 Purple blindedProduct code: 51.LRE.600

> <
Copyrights and rules of photo use

Product description:

Med injector rail. 4 cyl. with injectors marked in purple. The place for the pressure sensor is blinded, the strip is a set for the installation of 8 cyl.
This is a new version of white 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the metered LPG dose, and more resistant to the accumulation of pollutants.

Description of use:

After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.

Technical specifications:

Output: 25KW - max 40 KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold

E13-110R-000057

e3-036228

Features:

Type of injector MED
Number of injectors: 4

Included parts:

1 x  Body - plastic injector housing 4 cylinders LANDI RENZO - MED closed
4 x  MED GI25-80 injector purple
