Injection rail MED 3cyl.25-80 Purple blinded
>
Ask about the product
| Type of injector | MED |
|---|---|
| Number of injectors: | 3 |
| product code: | 77.GRO.361 R19 |
|---|---|
| manufacturer: | LANDI RENZO |
| category: | Injectors and accessories LANDI RENZO |
| manufacturer code: | NGK97999 |
| approval number: | E20-67R-010514 |
gross: 206,97 €
net: 168,27 €
Out of stock
Shipping in:
5-7 days
5-7 days
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart!
X
to cart
206,97 €
Injection rail MED 3cyl.25-80 Purple blindedProduct code: 77.GRO.361 R19
Copyrights and rules of photo useProduct description:

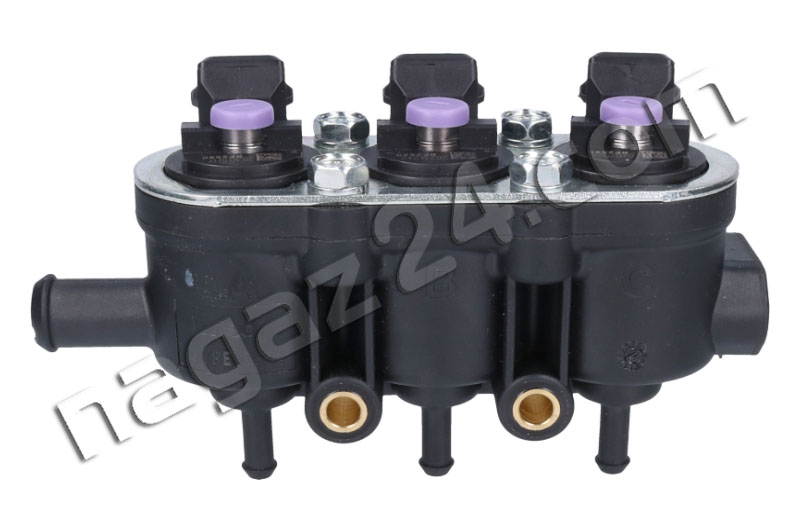

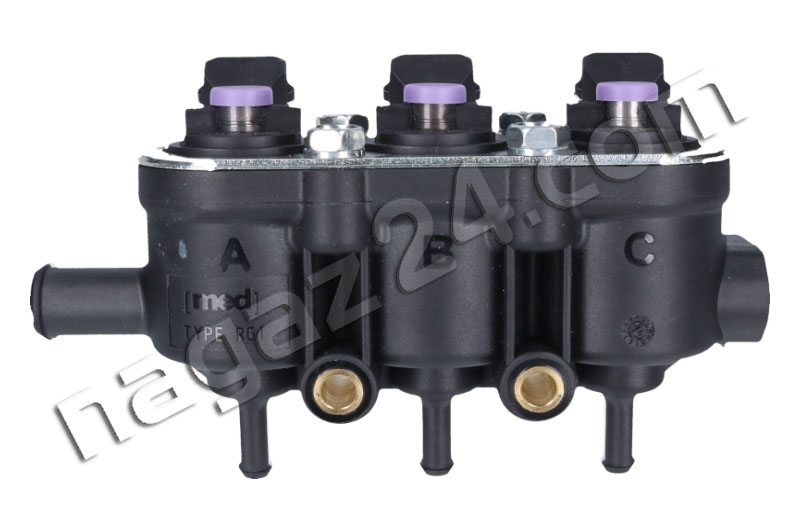

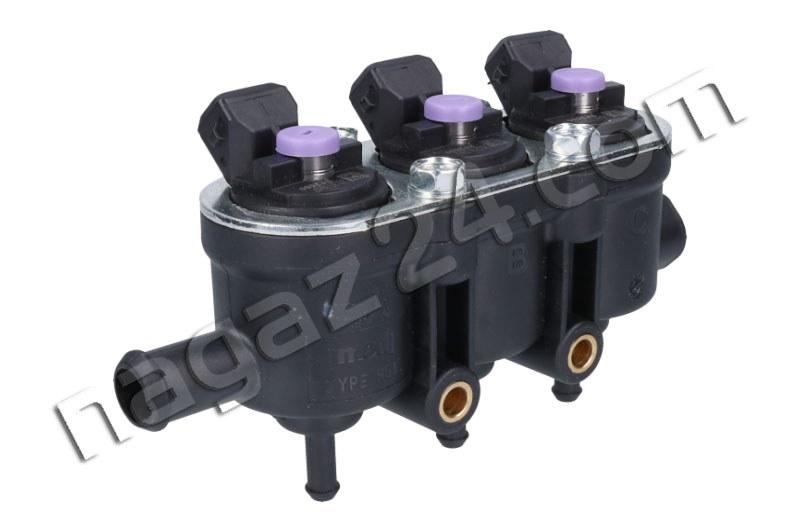

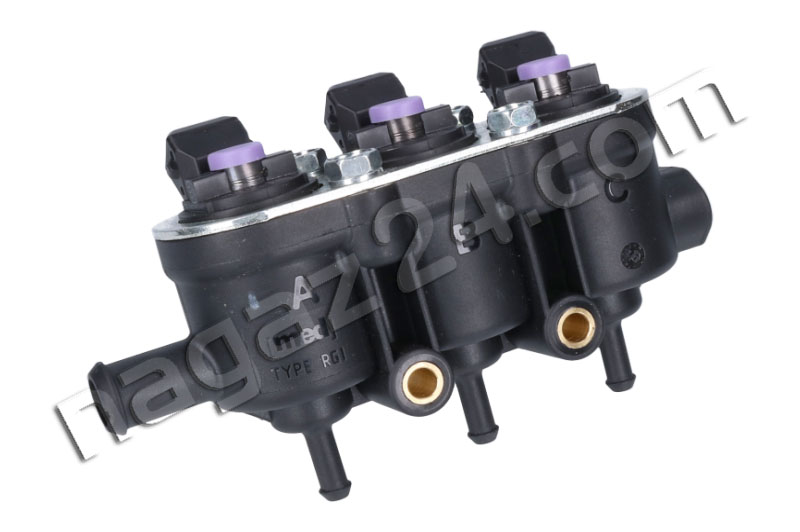

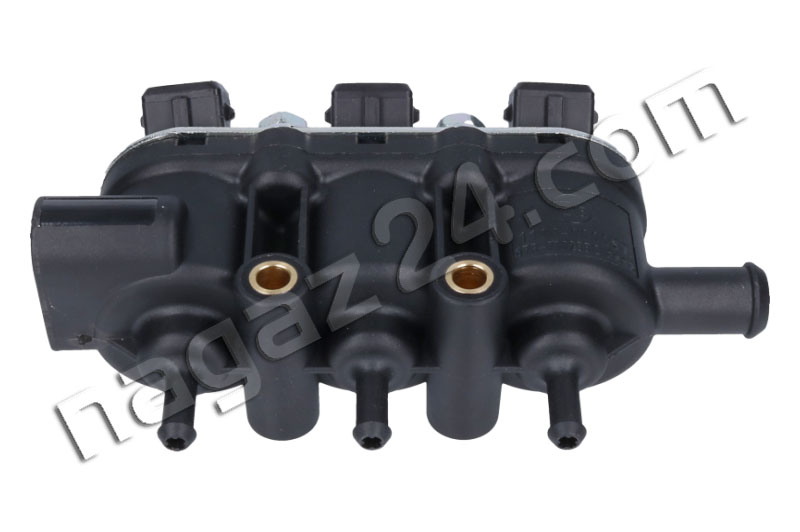

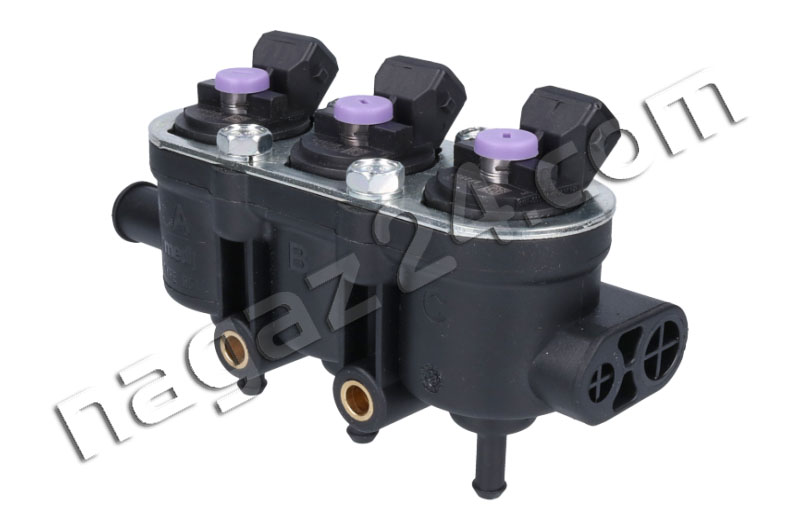

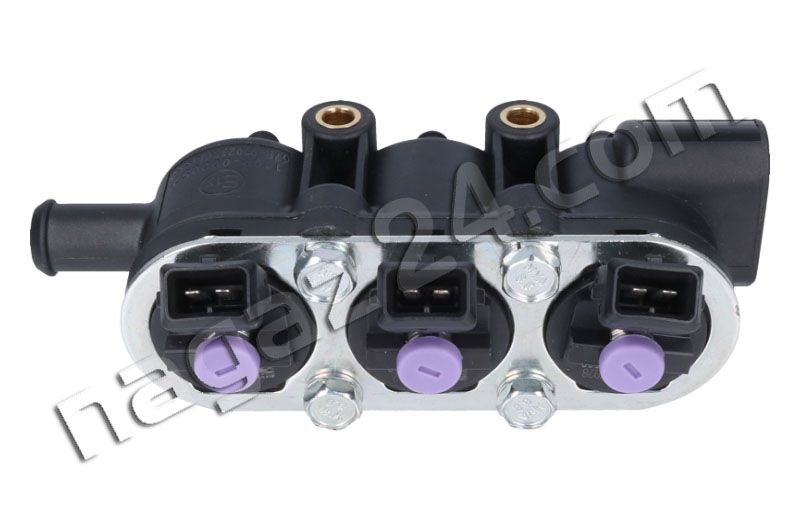

Med injector rail. 3 cyl. with injectors marked in purple. The place for the pressure sensor is blinded, the strip is a set for the installation of 6 cyl.
This is a new version of white 4-hole injectors.
The new injectors are 12 holes. They improve the linearity of the flow, are more resistant to the pulsation of the measured LPG dose, and more resistant to the accumulation of pollutants.
Description of use:
After replacing the 4-hole injectors with 12-hole injectors, it is necessary to verify or slightly correct the parameters of the gas map, especially in its upper parts, or load a ready map prepared for cooperation with 12-hole injectors
• It is unacceptable to use 4 and 12-hole injectors in one rail, due to their different flow characteristics at low loads and low engine speeds.
Technical specifications:
Output: 25KW - max 40 KW
Response time (response) 1.7 ms +/- 0.2
Operating temperature: -40/+120 (R110)
Test pressure: 3 bar
Max. sustain power: 1W
Working system: Peak and Hold
E13-110R-000057
e3-036228
Features:
| Type of injector | MED |
|---|---|
| Number of injectors: | 3 |
Included parts:
| 1 | x | Body - plastic injector housing 3 cylinders LANDI RENZO - MED closed |
| 3 | x | MED GI25-80 injector purple |
