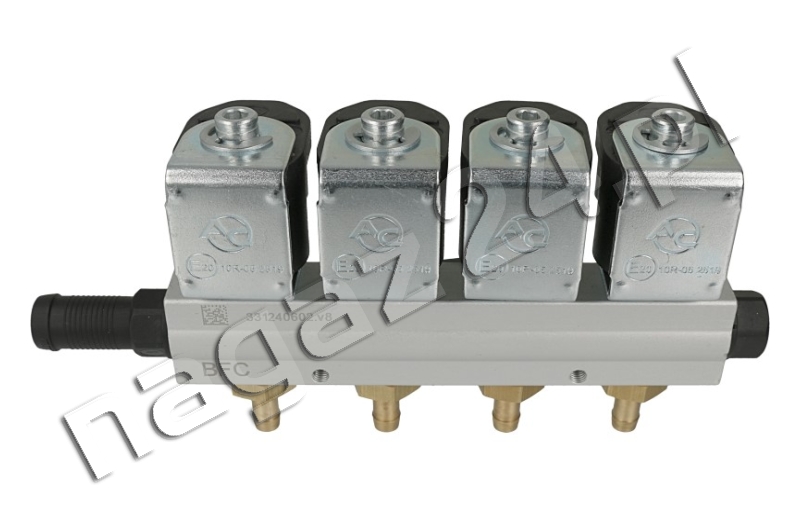

Injection rail ACW 01 BFC 4cyl + confection
>
Ask about the product
| Type of injector | ACW 01 |
|---|---|
| Number of injectors: | 4 |
| product code: | 55.LRE.963 |
|---|---|
| manufacturer: | AC STAG |
| category: | Injectors and accessories AC STAG |
| manufacturer code: | NGK97999 |
| approval number: | E13-67R-010233 |
gross: 56,23 €
net: 45,71 €
gross: 62,48 €
net: 50,79 €
Discount: 10%
The lowest price in the 30 days before the discount: 62.48 €
In stock
Buy now, we will send tomorrow. Order in:
17 hours
17 hours
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart
to cart!
X
to cart
56,23 €
Injection rail ACW 01 BFC 4cyl + confectionProduct code: 55.LRE.963
Copyrights and rules of photo useProduct description:

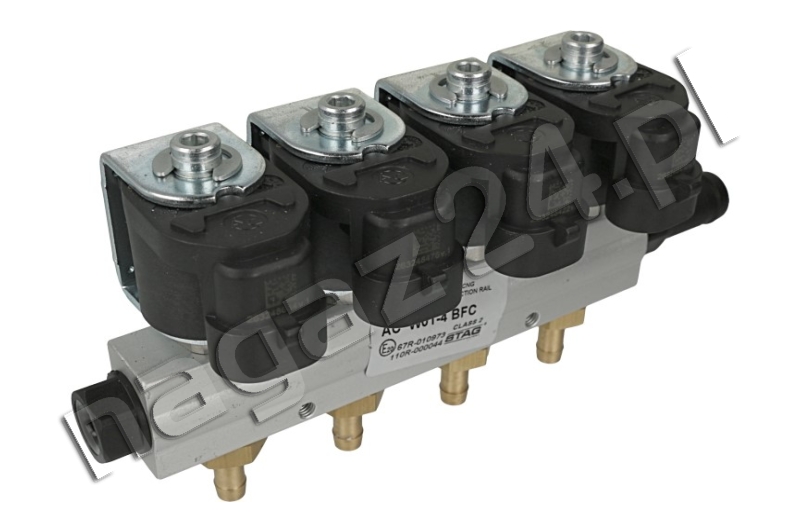

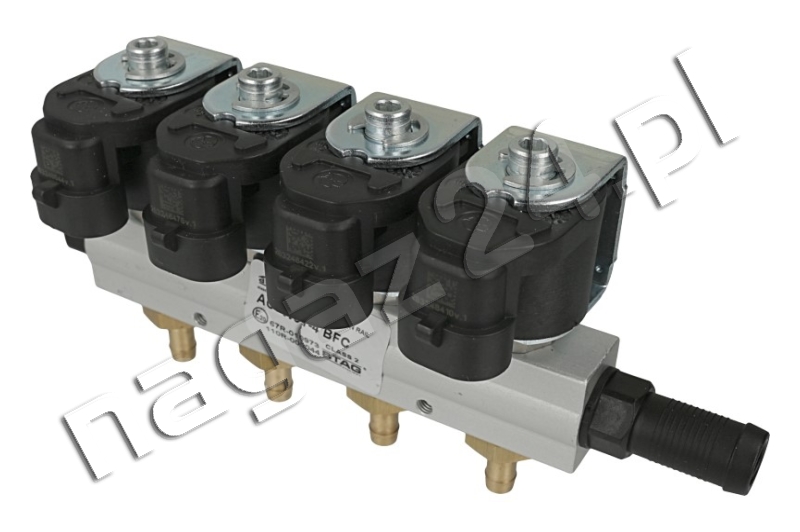

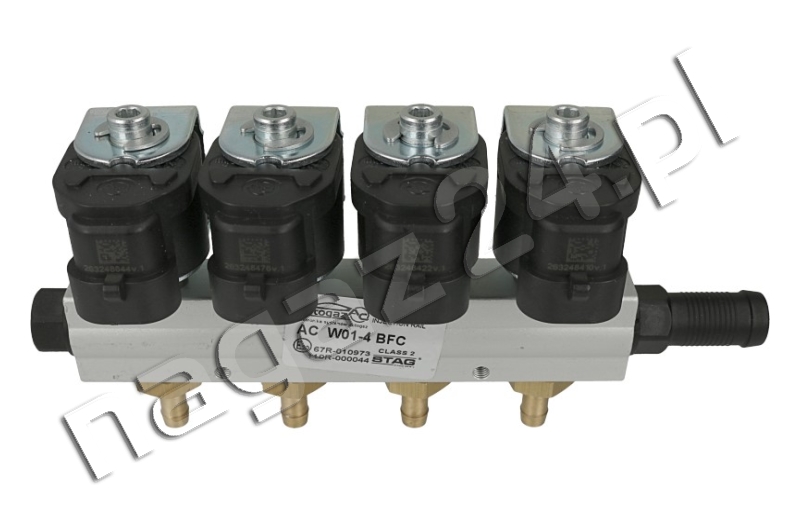

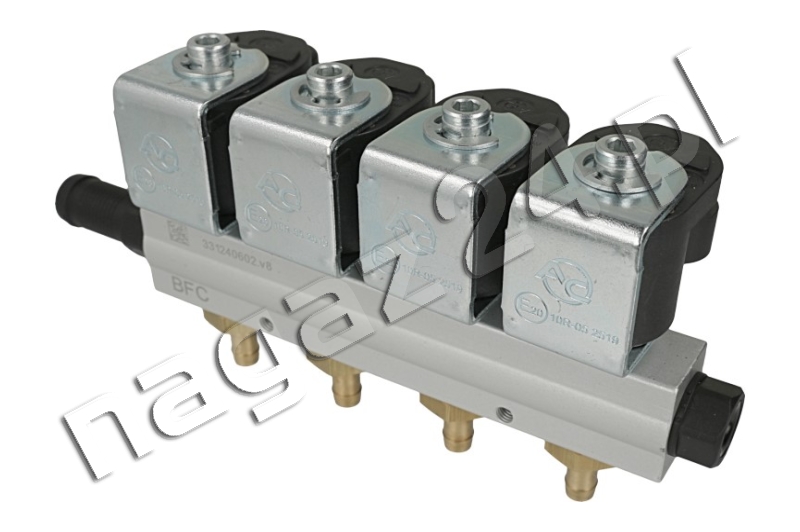

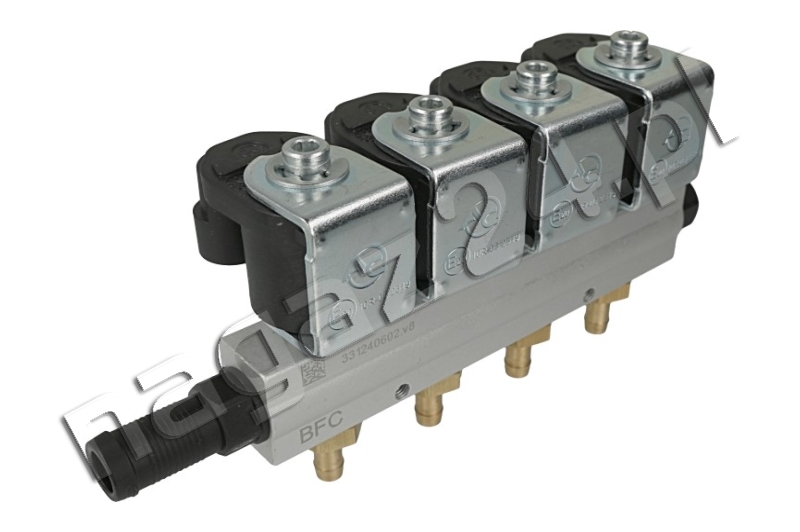

ACW 01 BFC four-cylinder injection rail from AC Białystok.
Description of use:
The rail is designed for AC Bialystok gas injection systems in the volatile phase, mounted on cars with four or eight-cylinder engines.
Technical specifications:

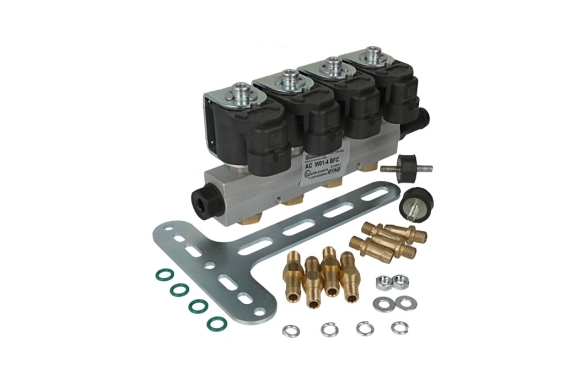

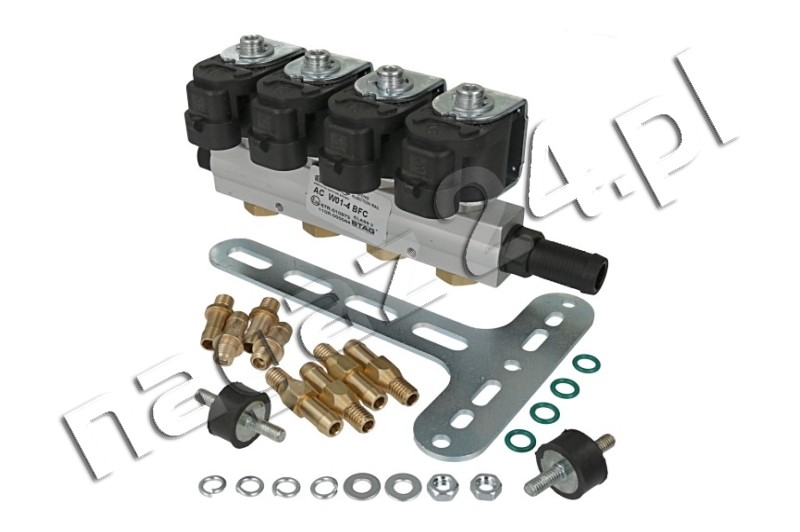

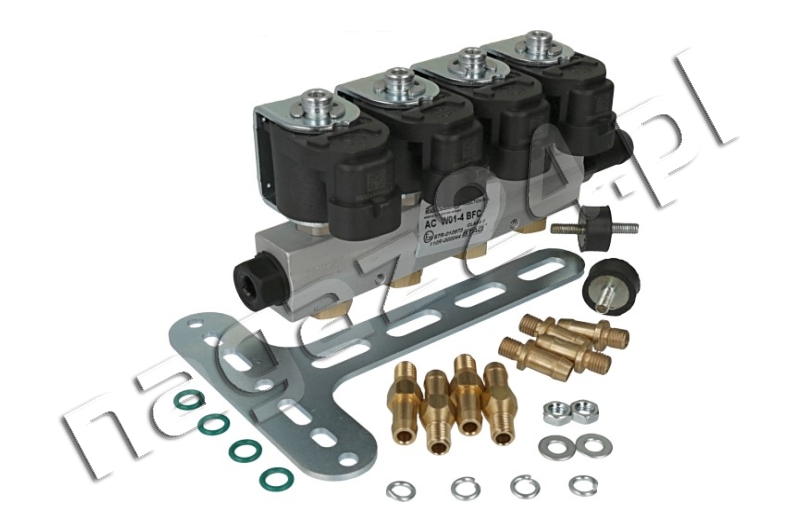

AC W01 injector rail - 4 cylinders (2 Ohm, E20 67R 010973, E20 110R 00 0044) - 1 set
Bar connector: fi 10.5mm - 1 pc.
Gas outlet connector (calibration nozzle) (diameter 4.5 mm) with sealing O-ring - 4 pcs.
Perforated handle in the shape of the letter "T" - 1 pc.
Manifold nozzle (connector fi 4.5 mm, hole fi 3.3 mm, thread M6) - 4 pcs.
Metal-rubber cushions - 2 pcs.
M4 nut - 2 pcs.
Regular washer M4 - 2 pcs.
Spring washer M4 - 4 pcs.
Working pressure: 0.95-1.2 bar,
Maximum working pressure: 4.5 bar,
Operating temperature: -20 to +120 C
Injector opening time at 1 bar pressure: <2.4 ms,
Injector closing time at 1 bar pressure: 1.7 ms,
Capacity range: 15-40 kW/cylinder,
Weight: 0.48 kg,
Coil resistance: 2Ω,
Maximum flow at 1 bar: 120 l/min.
Dimensions: L - 61 millimeters, D - 122 millimeters.
