FARO 9.6x5 straight connector on fi6
>
Ask about the product
| For connecting: | hose - part |
|---|
| product code: | 60.AEB.630 |
|---|---|
| manufacturer: | FARO |
| category: | Fitting accessories FARO |
| manufacturer code: | AE39 komplet 6 |
| approval number: | E3-10R-036375 |
gross: 2,55 €
net: 2,07 €
In stock
Buy now, we will send on monday. Order in:
52 hours
52 hours
Delivery from: 5 €
Added 1 pcs.
to cart!
to cart
to cart!
X
to cart
2,55 €
FARO 9.6x5 straight connector on fi6Product code: 60.AEB.630
Copyrights and rules of photo useProduct description:
FARO straight connector 9.6x5 to fi6 - original straight connector for thermoplastic gas (LPG) pipe made of plastic (PVC) by FARO.
Description of use:
FARO straight fitting 9.6x5 on fi6 - used in the high-pressure part of the car gas installation, in which LPG is in the liquid state (liquid phase).
FARO straight connector 9.6x5 on fi6 - allows you to connect (using a barrel and a clamping nut) a thermoplastic plastic (PVC) pipe from FARO instead of a copper (Cu) pipe with a diameter of 6 mm to an element of a car gas installation.
Technical specifications:

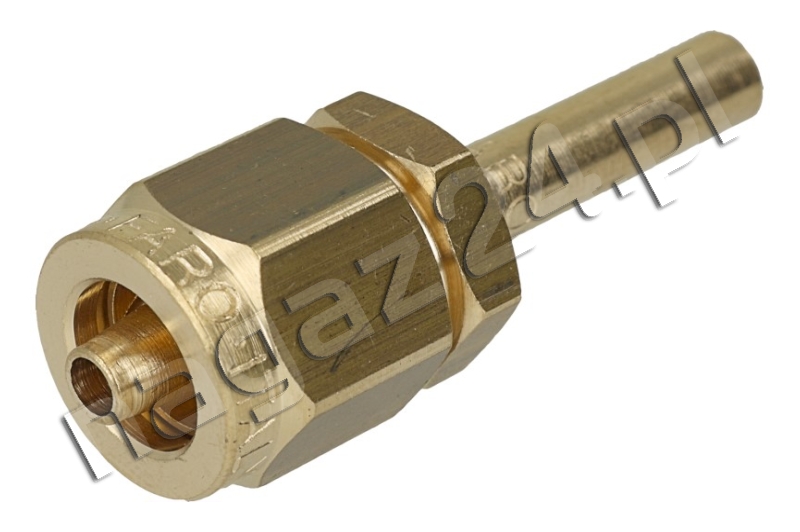

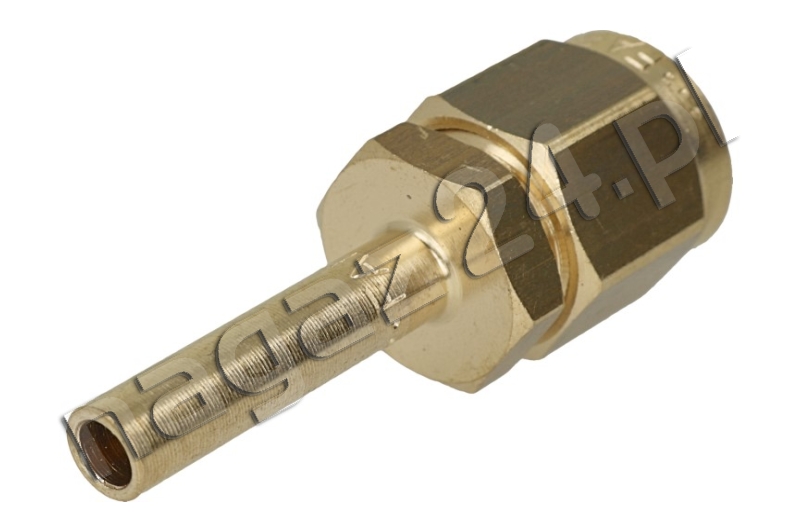

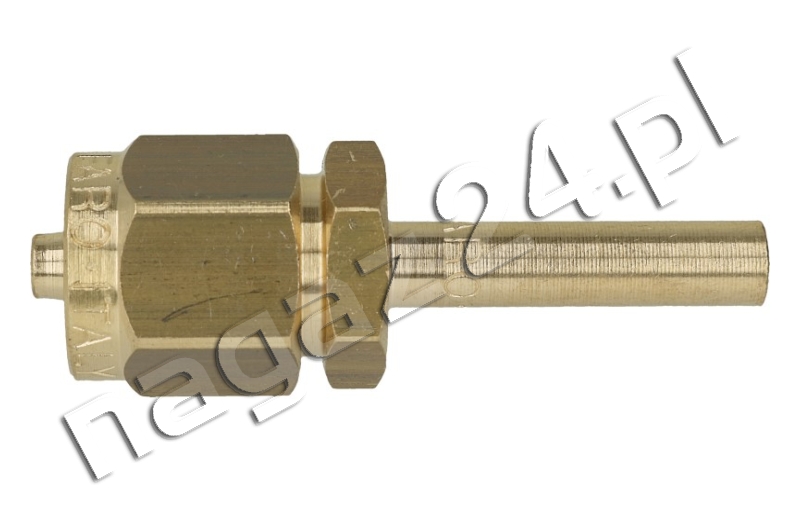

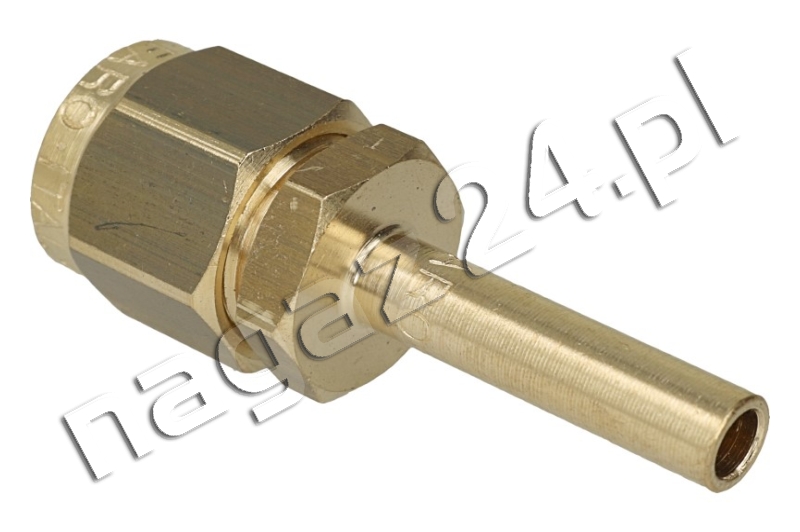

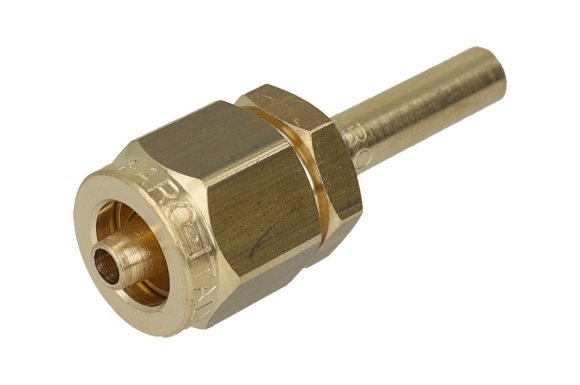

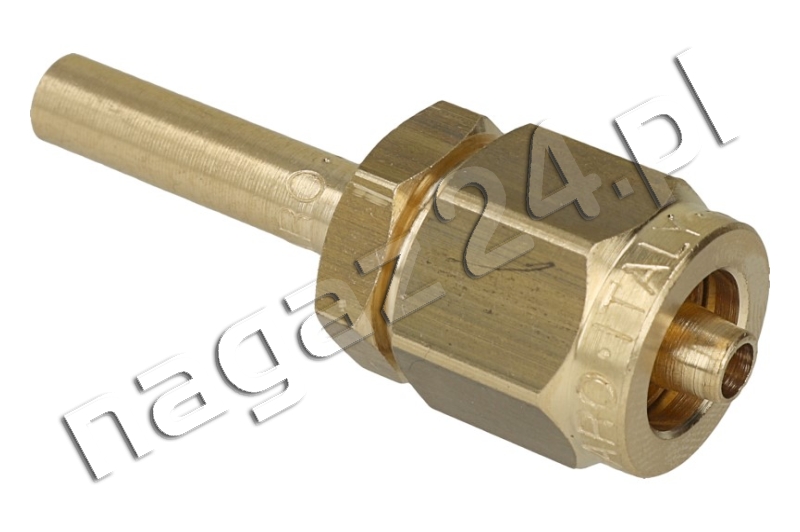

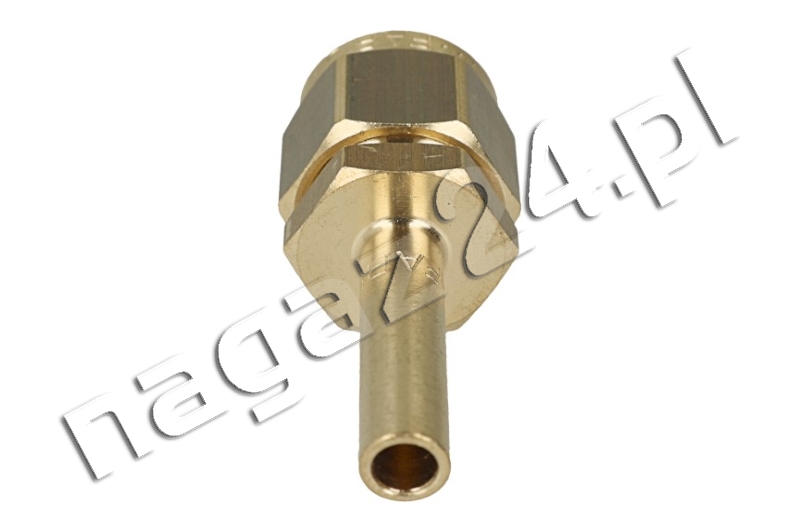

Straight connector FARO 9.6x5 on fi6 :
- brass straight connector,
- on one side, an end for inserting a FARO thermoplastic (PVC) cable with a diameter of 9.6x5 mm,
- on the other side, a connector with a diameter of 6 mm for mounting a barrel and a pressure screw screwed into a subassembly of the car gas system,
- complete with FARO cable clamp ring and cable clamp nut.
Note: The 6mm diameter sealing barrel and the 6mm diameter setscrew are not included.
Features:
| For connecting: | hose - part |
|---|

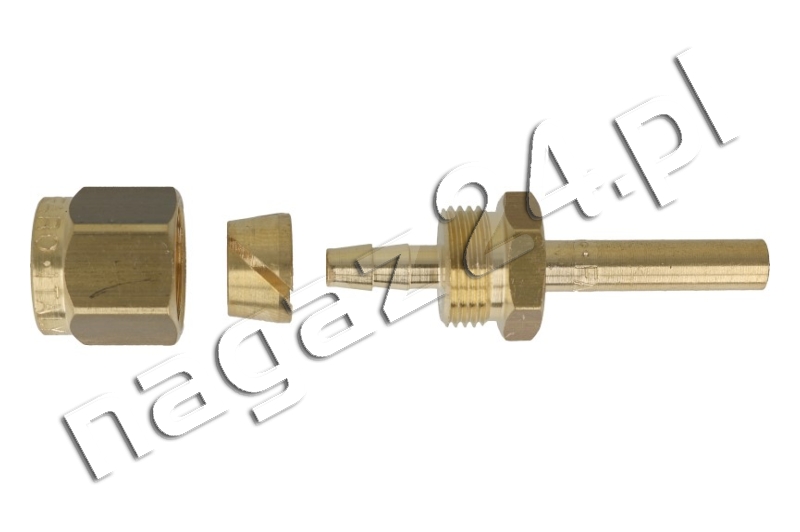

Included parts:
| 1 | x | FARO nut fi6 |
| 1 | x | FARO fi-6 barrel |
| 1 | x | PVC straight pipe coupling FARO fi6 |
